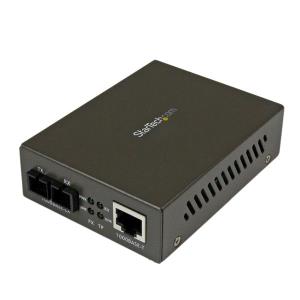

Gigabit Ethernet Single-mode Fiber Media Converter - Sc 15km

Gigabit Ethernet Single-mode Fiber Media Converter - Sc 15km

$129,67
Part Number: MCMGBSC15EU


To order contact us;

Computer Sources,Inc.
21B Millar Court
Paramus
NJ 07652
USA
Mail: mail1235@optonline.net

Minimum order amount $2500.00

Product Details

Introduction

Convert and extend a Gigabit Ethernet connection up to 15 km over Single Mode SC fiber
The MCMGBSC15EU Ethernet Media Converter converts transparently to/from 1000Base-T Ethernet signals and 1000Base-LH optical signals providing a cost-effective Ethernet-fiber/copper-fiber link - perfect for extending an Ethernet network connection over a Single Mode fiber backbone.
Supporting a Single Mode fiber optic cable distance of up to 15-kilometers (9.32-miles), this Fiber Media Converter delivers a simple solution for connecting Gigabit Ethernet networks to remote locations using SC-terminated SM fiber, while ensuring solid network performance and scalability.
The StarTech.com Advantage
- Compact, lightweight design ensures portability and simplifies mounted installations
- Easily installed into any scenario with little to no configuration needed
- Free Lifetime Technical Support

Network

Maximum data transfer rate

1000 Mbit/s

Networking standards

IEEE 802.3z

Duplex system

Full, Half

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

Fiber optic connector

SC

Performance

Maximum transfer distance

15000 m

Wavelength

1310 nm

Power

Input voltage

230 V

Output current

0.8 A

Weight & dimensions

Width

73 mm

Depth

99 mm

Height

27 mm

Weight

450 g

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-10 - 70 °C

Operating relative humidity (H-H)

5 - 90%

Packaging data

Package width

165 mm

Package depth

206 mm

Package height

65 mm

Technical details

Sustainability certificates

RoHS

Other features

Cable type

Fiber optic
