2-port Poe+ Injector 10/100/1000mbps Poe/poe+ 802.3af/at 4x 10/100

Introduction

Supply power and data to two PoE devices over standard Ethernet cabling

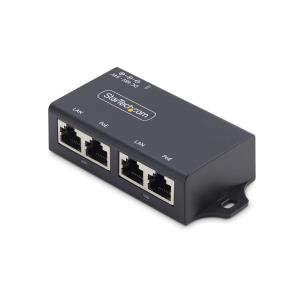

This 2-port multi-speed PoE+ injector serves as Power Sourcing Equipment (PSE) and enables Ethernet speeds of 10/100/1000Mbps. This mid-span inline injector can transmit network data and power up to 328ft (100m) for two Powered Devices (PD).

Versatile PoE Injector

Dual-port PoE injector supports the IEEE 802.3af and IEEE 802.3at PSE standards and delivers up to 30W output (52V/0.580A). Connect a remote PoE device to a network at a location where there is no power source, but an Ethernet cable already exists. This includes access points, IP cameras, VoIP phone systems, IPTV and access controls. The flexible design allows for either desktop or surface-mount use.

Streamlined Cable Management

All Ethernet cables can be routed from one side of the unit for efficient and organized cable management. The compact design (3.2x1x1.8in(82x25x46mm) ensures straightforward integration into existing network infrastructure, saving space and time during installation.

The StarTech.com Advantage

Network

Ethernet interface type

Gigabit Ethernet, Fast Ethernet

Ethernet LAN data rates

10,1000,100 Mbit/s

Cabling technology

10/100/1000

Power over Ethernet (PoE)

Yes

Networking standards

IEEE 802.3ab, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3at

Auto MDI/MDI-X

Yes

Web-based management

No

Chipset

IC Plus - IP802AR

Features

Product colour

Black

Housing material

Plastic

Wall mountable

Yes

Surge protection

Yes

Maximum operating distance

100 m

LED indicators

Yes

Jumbo frames support

Yes

Jumbo frames

9000

Auto-negotiation

Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports

4

RJ-45 input ports

2

RJ-45 output ports

2

DC-in jack

Yes

Power

Output power

30 W

AC adapter input voltage

100 - 240 V

Input current

1.5 A

AC adapter output voltage

52 V

Output current

1.25 A

Power consumption (max)

65 W

Total Power over Ethernet (PoE) budget

30 W

Surge protection voltage

2 kV

Power plug type

Type M

Suitable for use in country/location

Europe, United Kingdom

Certificates

Compliance certificates

RoHS

Operational conditions

Operating relative humidity (H-H)

5 - 90%

Storage temperature (T-T)

-10 - 70 °C

Weight & dimensions

Width

46 mm

Depth

102 mm

Height

25 mm

Weight

60 g

Packaging content

Quick installation guide

Yes

Packaging data

Package width

207 mm

Package depth

144 mm

Package height

38 mm

Package weight

105 g

Logistics data

Master (outer) case width

440 mm

Master (outer) case length

420 mm

Master (outer) case height

320 mm

Products per master (outer) case

40 pc(s)
