Hdmi Receiver Over Ip Network For The Ih2006 Product Series 4k 60hz Driverless Avoip Includes

Introduction

Use this receiver unit for the IH2006-KVM-EXTENDER to extend an HDMI-enabled computer over IP, with support for RS-232 pass-through

The AVoIP HDMI Receiver extends a 4K 60Hz HDMI signal over an existing TCP/IP network when paired with a compatible transmitter, keeping systems secure from unauthorized access and physical damage.

Driver-Free Installation

The plug-and-play design requires no drivers or software and is compatible with all major operating systems, including Windows, macOS, and Linux, as well as hardware platforms like Intel, AMD, Snapdragon/ARM, and Apple Silicon.

Scalable, Flexible, and Future-Proof

Easily expand your setup by adding multiple receivers to create a one-to-many configuration, making it easy to scale with your business needs for flexible and future-proof IP Video or KVM distribution.

Professional-Grade Design

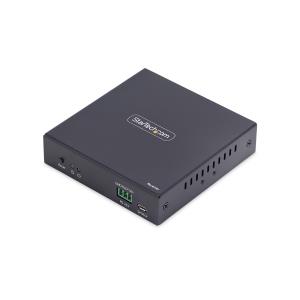

Receiver features a durable metal housing with mounting kits for wall or under-desk installation, plus rubber feet for desktop stability. RS232 and 3.5mm audio passthrough ports enable serial and audio extension.

The StarTech.com Advantage

Features

Type

Receiver

Connectivity technology

Wired

Rack mounting

No

Maximum digital resolution

3840 x 2160 pixels

Maximum refresh rate

60 Hz

On Screen Display (OSD)

No

Product colour

Black

Material

Metal

LED indicators

Yes

Receiver

Receiver local video port type

HDMI

RJ-45 ports quantity (receiver)

1

Receiver Micro-USB ports quantity

1

Ports & interfaces

HDMI version

2.0

RS-232 ports

1

PC Audio out

Yes

Power

Power plug type

Type M

AC input voltage

100 - 240 V

Input current

0.3 A

AC adapter output voltage

5 V

AC adapter output current

2 A

Power consumption (receiver) (max)

10 W

DC-in jack

Yes

Packaging data

Package width

199 mm

Package depth

149 mm

Package height

80 mm

Package weight

500 g

Packaging content

AC adapter included

Yes

Cables included

No

Mounting bracket(s) included

Yes

Included power plug types

ANZ, EU, NA, UK

Operational conditions

Operating temperature (T-T)

-20 - 60 °C

Storage temperature (T-T)

-30 - 70 °C

Operating relative humidity (H-H)

0 - 90%

Other features

Compliance certificates

Federal Communications Commission (FCC), RoHS

Logistics data

Master (outer) case width

425 mm

Master (outer) case length

315 mm

Master (outer) case height

420 mm

Products per master (outer) case

20 pc(s)
