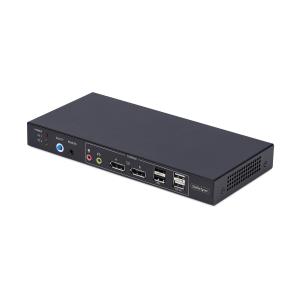

Dual-monitor DisplayPort KVM Switch 2-port With Dual View Video Matrix, 4k 60hz, 4x USB Hub Ports, Hotkey Switching

Introduction

Share a mouse, keyboard, USB hub, and dual 4K 60Hz DisplayPort monitors, between two DisplayPort-enabled computers, featuring dual-view video matrix capabilities

The Video Matrix KVM Switch allows you to view one display from each connected computer and switch the keyboard, mouse, and audio device between the selected displays using hotkeys. You can also switch all connected peripherals and both monitors like a standard KVM.

Universal Compatibility

The TAA-Compliant KVM Switch provides BIOS/UEFI control and works with any operating system, including Windows, macOS, and Linux. No software is required, and it is compatible with all hardware platforms such as Intel, AMD, and Apple Silicon.

Customizable Switching

Switching KVM ports is easy with the front-facing push button, hotkeys, or the included remote selector cable. An audible buzzer provides confirmation, and LEDs offer quick visual port selection status.

Reliable Performance

The durable design features a steel housing that helps prevent Electro-Magnetic Interference (EMI), enhancing the stability and reliability of the KVM. Its sturdy construction makes it ideal for installation in a variety of environments, and it offers 8kV Air/6kV Contact ESD protection.

USB Audio

Eliminate the need to connect 3.5mm cables from the computers to the KVM by using this KVM switch's built-in USB audio device, which provides 3.5mm audio jacks for both microphone and speakers. This setup simplifies your workspace by integrating audio management directly into the KVM switch.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

• Advanced Windows Layout Utility: Setup and save custom windows layouts.
• USB Event Monitoring Utility: Track and log connected USB devices.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-tools

The StarTech.com Advantage

Ports & interfaces

Number of computers controlled

2

Keyboard port type

USB

Mouse port type

USB

Video port type

DisplayPort

DisplayPorts quantity

4

DisplayPort version

1.2

USB 2.0 Type-B ports quantity

2

Console ports

3.5mm headphone, 3.5mm mic, DisplayPort, USB A

Console USB ports quantity

4

Console DisplayPorts ports quantity

2

USB hub

Yes

USB 2.0 Type-A hub ports quantity

2

Audio connections

Yes

Headphone outputs

1

Number of microphone inputs

1

DC-in jack

Yes

Performance

HD type

4K Ultra HD

Maximum resolution

3840 x 2160 pixels

Data transfer rate (max)

0.48 Gbit/s

Scan interval

10,20,30,40,50,60 s

Daisy chain

No

Audio channels

2.0

Design

Rack mounting

No

Product colour

Black

Housing material

Aluminium, Steel

Wired remote switch

Yes

LED indicators

Yes

Push button

Yes

Hot keys

Yes

Mean time between failures (MTBF)

87298 h

Display

Built-in display

No

On Screen Display (OSD)

No

Power

Power source

DC

Input voltage

100 - 240 V

Input current

1 A

Output voltage

12 V

Output current

3 A

Power consumption (typical)

36 W

Power plug type

Type M

Compatible power plug types

AU, EU, UK, US

Sustainability

Compliance certificates

Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA)

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 90%

Weight & dimensions

Width

105 mm

Depth

221 mm

Height

26 mm

Weight

626 g

Packaging data

Package width

250 mm

Package depth

292 mm

Package height

78 mm

Package weight

1.5 kg

Packaging content

Quick installation guide

Yes

AC adapter included

Yes

Other features

IP control

No

Logistics data

Master (outer) case width

539 mm

Master (outer) case length

419 mm

Master (outer) case height

333 mm

Products per master (outer) case

10 pc(s)
