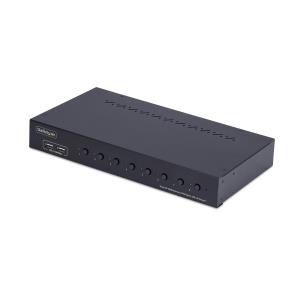

DisplayPort KVM Switch 8-port With 1u Rack Mount Kit

Introduction

Control up to eight USB and DisplayPort-enabled computers from a single keyboard, mouse, and 4K 60Hz DisplayPort monitor

The 4K 60Hz rackmount KVM switch allows switching between eight DisplayPort-enabled computers, sharing a keyboard, mouse, audio, 4-port USB 2.0 hub, and a 4K 60Hz DisplayPort 1.2 monitor. This enables effortless multi-system management, improved workspace efficiency, and enhanced productivity.

No Drivers or Software

The TAA-Compliant 8-Port KVM Switch is universally compatible, providing BIOS-level control and working with any operating system, including Windows, Windows ARM, macOS, ChromeOS, and Linux. It is also compatible with all hardware platforms such as Intel, AMD, SnapDragon/ARM, and Apple Silicon.

Multiple Switching Options

Ensures efficient and user-friendly operation for multi-server administration with switching via push-buttons or hotkeys, an audible buzzer for confirmation, and LEDs for quick visual port selection status.

Rack Mount Kit Included

The KVM switch offers a space-saving solution for managing multiple servers directly within a rack. It includes rack-mount brackets for installation in 1U of rack space on network racks and is compatible with 19-inch server racks that have a mounting depth of 6.5 inches (165mm) or more. It also complies with ANSI/EIA RS-310-D standards.

To ensure flexibility to choose the best cables for your specific installation, the KVM switch does not include cables. StarTech.com offers a wide variety of DisplayPort, USB, and 3.5mm audio cables in assorted lengths to suit different installation needs.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

• Advanced Windows Layout Utility: Setup and save custom windows layouts.
• USB Event Monitoring Utility: Track and log connected USB devices.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-tools

The StarTech.com Advantage

Ports & interfaces

Number of computers controlled

8

Keyboard port type

USB

Mouse port type

USB

Video port type

DisplayPort

DisplayPorts quantity

8

DisplayPort version

1.2

USB 2.0 Type-B ports quantity

8

Console ports

3.5mm headphone, DisplayPort, USB A

Console USB ports quantity

4

Audio connections

Yes

Headphone outputs

1

Number of microphone inputs

8

DC-in jack

Yes

Performance

HD type

4K Ultra HD

Maximum resolution

3840 x 2160 pixels

Data transfer rate (max)

0.48 Gbit/s

Scan interval

10,20,30,40,50,60,70,80,90,100 s

Daisy chain

No

Audio channels

2.0

Design

Rack mounting

Yes

Rack capacity

1U

Product colour

Black

Housing material

Zinc

LED indicators

Yes

Push button

Yes

Hot keys

Yes

Mean time between failures (MTBF)

73003 h

Display

Built-in display

No

On Screen Display (OSD)

No

Power

Power source

DC

Input voltage

100 - 240 V

Input current

1 A

Output voltage

12 V

Output current

3 A

Power consumption (typical)

36 W

Power plug type

Type M

Compatible power plug types

AU, EU, UK, US

Sustainability

Compliance certificates

Federal Communications Commission (FCC), Trade Agreements Act (TAA)

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 90%

Weight & dimensions

Width

164 mm

Depth

300 mm

Height

44 mm

Weight

1.5 kg

Packaging data

Package width

435 mm

Package depth

288 mm

Package height

70 mm

Package weight

2.3 kg

Packaging content

Quick installation guide

Yes

Rack mount kit

Yes

Other features

Audio support

Yes

IP control

No

Logistics data

Master (outer) case width

466 mm

Master (outer) case length

390 mm

Master (outer) case height

316 mm

Products per master (outer) case

5 pc(s)
