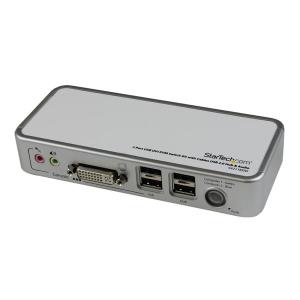

KVM Switch Kit USB/ DVI 2 Port With Cables USB 2.0 Hub & Audio

Introduction

Control 2 USB-enabled computers with DVI output from a single keyboard, mouse and monitor; includes all-in-one cables
The SV211KDVIEU 2 Port USB DVI KVM Switch Kit with Cables, USB 2.0 Hub & Audio provides control of 2 DVI-enabled, USB-controlled computers, as well as independent audio/microphone switching for uninterrupted audio when switching between PCs. This USB+DVI KVM Switch features support for high-resolution digital (1920x1200) and analog (2048x1536) video, plus an integrated USB 2.0 hub that enables you to share 2 high-speed USB devices between computers. Compatible with Mac®, Linux and Windows® based computers, this compact DVI KVM is a great space-saving solution for a broad range of environments including SOHO (Small or Home Offices), gaming, multimedia production and more. A complete, out-of-the-box solution, this DVI KVM Switch includes two 4 ft. DVI/Audio & Mic combo cables that simplify computer connection to the switch and help to eliminate cable clutter. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- All cables necessary are included in the box for a true plug and play setup without the hassle of finding additional components or accessories
- High Resolution support, up to 2048x1536(analog) / 1920x1200(digital) offers crystal clear video clarity even on large displays
- Integrated USB 2.0 hub and Mic/Audio switching allows the user to have full multimedia control of two computers and share USB peripherals eliminating the expense of duplicate devices

Ports & interfaces

Number of computers controlled

2

Video port type

DVI-I

DVI-I ports quantity

3

USB 2.0 ports quantity

4

Headphone outputs

1

Number of microphone inputs

1

DC-in jack

Y

Performance

Maximum resolution

2048 x 1536 pixels

Maximum digital resolution

1920 x 1200 pixels

Maximum analog resolution

2048 x 1536 pixels

Number of users

1 user(s)

Design

Product colour

White

Housing material

Plastic

Display

Built-in display

N

Power

AC input voltage

110-240 V

External power adapter

Y

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Weight & dimensions

Width

154 mm

Depth

65.5 mm

Height

27 mm

Weight

160 g

Packaging data

Package width

140 mm

Package depth

205 mm

Package height

180 mm

Package weight

1.25 kg

Packaging content

Cables included

DVI,USB

Quick installation guide

Y

AC adapter included

Y

Technical details

Sustainability certificates

RoHS
