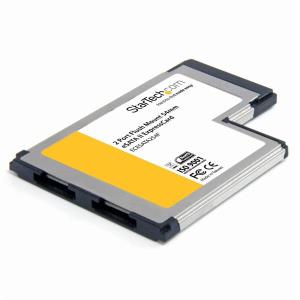

Flush Mount Expresscard 54mm ESATA Ii Controller Adapter Card 2 Port

Flush Mount Expresscard 54mm ESATA Ii Controller Adapter Card 2 Port

$25,33
Part Number: ECESATA254F


To order contact us;

Computer Sources,Inc.
21B Millar Court
Paramus
NJ 07652
USA
Mail: mail1235@optonline.net

Minimum order amount $2500.00

Product Details

Introduction

Add 2 flush mounted eSATA ports to a laptop through an ExpressCard/54 slot

The ECESATA254F Flush Mount 2-Port eSATA ExpressCard Adapter uses a unique slim 54mm form factor design that allows it to sit fully in a standard laptop ExpressCard/54 slot without sticking out. When installed, the ports sit flush with the sides of the laptop, creating a seamless add-on that can be left installed at all times, without fear that it or the card slot will be damaged due to snagging or impact.

The eSATA ExpressCard adapter features 2 independent eSATA ports, and is compatible with the latest high capacity SATA drives (SATA I, SATA II) with support for data transfer speeds up to 3 Gbps.

With support for Port Multiplier technology and hot-swap installation, the eSATA ExpressCard allows compatible multi-drive enclosures to be connected over a single eSATA cable, and devices can be connected and disconnected without having to reboot the system.

The StarTech.com Advantage

- Unique 54mm flush mount design fits seamlessly into ExpressCard/54 slots, so it can be left installed without the worry of snagging or hitting the card
- Port Multiplier and 48-bit LBA support means multi-drive enclosures and large capacity drives work as intended
- Backed by a StarTech.com 2-year warranty and free lifetime technical support

Ports & interfaces

Host interface

ExpressCard

Output interface

SATA

eSATA ports quantity

2

Features

Chipset

Silicon Image Sil3132CNU

Operational conditions

Operating temperature (T-T)

0 - 70 °C

Storage temperature (T-T)

-65 - 150 °C

Weight & dimensions

Width

54 mm

Depth

75 mm

Height

5 mm

Weight

22.5 g

Packaging data

Package width

145 mm

Package depth

175 mm

Package height

30 mm

Package weight

115 g

Other features

Data transfer rate

3000 Mbit/s

Ports quantity

2

Connectivity technology

Wired

Mac compatibility

N

Compatible operating systems

Windows 2000/ XP(32/64-bit)/ Server 2003(32/64-bit)/ Vista(32/64-bit)/ Server 2008 R2/ 7(32/64-bit), Linux
