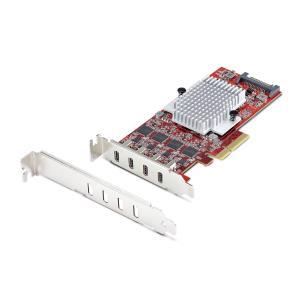

USB Controllers Pci-e Expansion Card - 4-port USB Type-c Pcie Card, USB 3.2 10gbps, USB-c - 4x Independent

Introduction

Add four 10Gbps USB Type-C ports to a server or desktop computer through PCI Express

Expand the USB connectivity of a desktop computer or server by adding four external USB Type-C 10Gbps ports with this internal PCI Express 3.0 expansion card.

Dedicated USB Controllers

Traditional single-controller USB cards share bandwidth across all ports. With its four independent USB controllers, this USB-C expansion card enables each port to achieve up to 10Gbps, reducing bottlenecks and increasing data throughput.

USB 3.2 Gen 2 (10Gbps) Performance

The high bandwidth makes the card ideal for transferring large files, real-time editing of high-resolution photos and videos on external storage, off-loading media from mobile devices, using high-resolution video capture devices, tethered photography equipment, or high-speed USB network adapters like 10G Ethernet copper or fiber adapter.

Charge and Sync USB Devices

This USB PCI Express card can provide up to 5V 3A (15W) per USB-C port, enabling sync and charge of portable devices. If the motherboard can't supply enough power, a built-in SATA power connector can supply additional power to the card.

Compatibility

The PCI Express USB card is plug-and-play in most major operating systems, including Windows, macOS, and Linux. The card is compatible with PCI Express 3.0 and x4, x8, and x16 slots. The USB expansion card also ships with a pre-installed low-profile bracket and includes a standard profile bracket for maximum compatibility.

The StarTech.com Advantage

Ports & interfaces

Host interface

PCIe

Output interface

USB 3.2 Gen 2 (3.1 Gen 2)

Expansion card standard

PCI 3.0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

4

Internal SATA ports quantity

1

SATA power connector type

SATA 15-pin

Design

Internal

Yes

Product colour

Red

Features

Chipset

ASMedia - ASM3142 x4, ASMedia - ASM1543 x4, ASMedia - ASM2812X

Data transfer rate (max)

10 Gbit/s

Plug and Play

Yes

Operational conditions

Operating temperature (T-T)

0 - 85 °C

Storage temperature (T-T)

-25 - 85 °C

Operating relative humidity (H-H)

20 - 80%

Technical details

Compliance certificates

Trade Agreements Act (TAA)

System requirements

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64

Linux operating systems supported

Yes

Server operating systems supported

Windows Server 2019, Windows Server 2022

Weight & dimensions

Width

56.2 mm

Depth

140 mm

Height

79.2 mm

Weight

100 g

Packaging data

Mounting brackets included

Yes

Quick installation guide

Yes

Package width

142 mm

Package depth

170 mm

Package height

30 mm

Package weight

160 g

Logistics data

Products per master (outer) case

60 pc(s)

Master (outer) case width

380 mm

Master (outer) case length

310 mm

Master (outer) case height

500 mm
