Product Details
Introduction

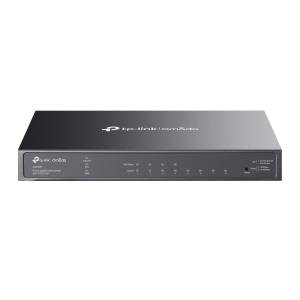

TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.
Management features
Switch type
Managed
Switch layer
L2/L2+
Quality of Service (QoS) support
Yes
Web-based management
Yes
ARP inspection
Yes
System event log
Yes
MIB support
MIB II (RFC1213) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) Radius Accounting Client MIB (RFC2620) Radius Authentication Client MIB (RFC2618) Remote Ping, Traceroute MIB (RFC2925) Support TP-Link private MIBs RMON MIB(RFC1757, rmon 1,2,3,9)
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Network
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support
No
Port mirroring
Yes
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Rate limiting
Yes
Auto MDI/MDI-X
Yes
Spanning tree protocol
Yes
Auto-negotiation
Yes
VLAN support
Yes
Number of VLANs
4094
Data transmission
Switching capacity
16 Gbit/s
Forwarding rate
11.9 Mpps
MAC address table
8000 entries
Number of queues
8
Jumbo frames support
Yes
Jumbo frames
9000
Packet buffer memory
4.1 MB
Security
DHCP features
DHCP client, DHCP relay, DHCP snooping, DHCPv6 server, DHCPv6 snooping
IGMP snooping
Yes
Security algorithms
802.1x RADIUS
MAC address filtering
Yes
Authentication
MAC-based authentication, Web-based authentication
Authentication type
RADIUS
Multicast features
Multicast support
Yes
Protocols
Management protocols
SNMPv1/v2c/v3
IPv4 & IPv6 features
IPv6 Telnet, IPv6 ping, IPv6 tracert
Design
Rack mounting
Yes
Product colour
Black
LED indicators
Yes
Certification
CE, FCC, RoHS
Performance
Fanless
Yes
Power
Power supply included
Yes
Power consumption (max)
77.3 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
4
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
263.6 BTU/h
Weight & dimensions
Width
209 mm
Depth
126 mm
Height
26 mm
Packaging data
Manual
Yes
Package type
Box
