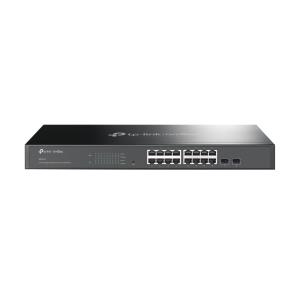

Jetstream Tl-sg2218 16-port Gigabit Smart Switch With 2 Sfp Slots

Introduction

TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.

Management features

Switch type

Managed

Switch layer

L2/L2+

Quality of Service (QoS) support

Yes

Web-based management

Yes

Cloud-managed

Yes

ARP inspection

Yes

System event log

Yes

MIB support

Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

16

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Gigabit Ethernet (copper) ports quantity

16

SFP module slots quantity

2

Network

Networking standards

IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z

10G support

No

Port mirroring

Yes

Flow control support

Yes

Link aggregation

Yes

Broadcast storm control

Yes

Rate limiting

Yes

Spanning tree protocol

Yes

Ethernet LAN data rates

10,100,1000 Mbit/s

VLAN support

Yes

Virtual LAN features

Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN

Number of VLANs

4000

Data transmission

Switching capacity

36 Gbit/s

Forwarding rate

26.8 Mpps

MAC address table

8000 entries

Store-and-forward

Yes

Static route

Yes

Number of static routes

32

Number of IP interfaces

16

Jumbo frames support

Yes

Jumbo frames

9000

Packet buffer memory

4.1 MB

Security

DHCP features

DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping

Access Control List (ACL)

Yes

IGMP snooping

Yes

SSH/SSL support

Yes

Loop protection

Yes

BPDU filtering/protection

Yes

Multicast features

Multicast support

Yes

Multicast Listener Discovery (MLD) snooping

Y

Protocols

Management protocols

SNMPv1/v2c/v3, SNTP

GARP VLAN Registration Protocol (GVRP)

Yes

Design

Rack mounting

Yes

Form factor

1U

Product colour

Black

LED indicators

Yes

Certification

CE, FCC, RoHS

Performance

Fanless

Yes

Power

Power source

AC

Power supply included

Yes

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Power consumption (max)

12.3 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)

No

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 90%

Heat dissipation

41.97 BTU/h

Weight & dimensions

Width

440 mm

Depth

180 mm

Height

44 mm

Packaging data

Cables included

AC, LAN (RJ-45)

Quick start guide

Yes
