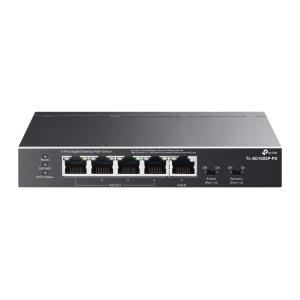

Desktop Switch Tl-sg1005p-pd 5-port Gigabit Desktop Poe+ With 1-port Poe++

Introduction

- Ports: 5× 10 Mbps/100 Mbps/1 Gbps RJ45 ports
- 1-Port Gigabit PoE++ In and 4-Port PoE+ Out: Supports up to 66 W / 47 W / 21 W/ 9 W PoE budget output when powered by 802.3bt Type 4, 802.3bt Type 3, 802.3at, and 802.3af PoE standard, respectively.*
- Long-Range PoE+: With Extend Mode**, PoE transmission distance reaches up to 250 m, perfect for surveillance camera deployment in large areas.
- PoE Auto Recovery: It guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices.
- Metal Casing: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
- Silent Operation: Industry-leading fanless design ensures silent operation, ideal for any home or business.
- Plug and Play: No configuration and installation required.
- Power Supply: The product only supports PoE power supply, not AC or DC power supply.

Ideal for Mains-Free Environments
Powered by a PoE++ switch or PoE++ injector, no additional DC adapter is required.
- Scenarios without mains power
- Powered by PoE++/PoE+/PoE

Power over Ethernet, Flexible Network Deployment
Supports up to 66W/47W/21W/9W PoE budget output when powered by 802.3bt Type 4 (90 W), 802.3bt Type 3 (60 W), 802.3at, and 802.3af PoE, respectively.* The PoE-PD switch automatically detects the required PoE power for your devices and protects your non-PoE equipment from being damaged.

- Access Point
- IP Phone
- IP Camera
- 4K Video
- Network Video Recorder
- Computer

Instantaneous Multi-mode Toggles, Ideal for IP Surveillance
- Extend Mode. Up to 250m Transmissions. With extend mode, the PoE transmission distance reaches up to 250 m** —perfect for IP Camera deployment in large areas.
- Recovery Mode. PoE Auto Recovery. Recovery mode helps automatically detect and reboot PD devices, such as cameras and APs, when they fall offline or go unresponsive—all without needing manual monitoring and restarts.

Management features

Quality of Service (QoS) support

Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

5

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Network

Networking standards

IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

10G support

Yes

Copper ethernet cabling technology

10BASE-T, 100BASE-TX, 1000BASE-T

Cable types supported

Cat3, Cat4, Cat5, Cat5e, Cat6

Flow control support

Yes

Auto MDI/MDI-X

Yes

Auto-negotiation

Yes

MAC address auto-learning supported

Yes

MAC address auto-aging supported

Yes

Data transmission

Switching capacity

10 Gbit/s

Forwarding rate

7.44 Mpps

MAC address table

2000 entries

Store-and-forward

Yes

Security

IGMP snooping

Yes

Design

Product colour

Black

LED indicators

Yes

Wall mountable

Yes

Certification

CE, FCC, RoHS

Performance

Fanless

Yes

Power

Power source

PoE

Power supply included

No

Power consumption (max)

68.59 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)

Yes

Power over Ethernet (PoE) ports quantity

5

Total Power over Ethernet (PoE) budget

66 W

Operational conditions

Operating temperature (T-T)

-30 - 70 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 90%

Heat dissipation

233.206 BTU/h

Weight & dimensions

Width

158 mm

Depth

101 mm

Height

25 mm

Packaging data

User guide

Yes

Package type

Box
