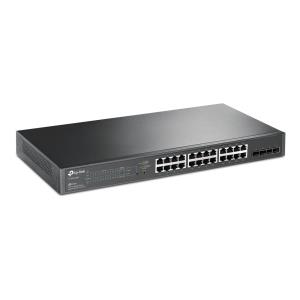

Jetstream Tl-sg2428p 28-port Gigabit Smart Switch With 24 Port Poe+

Introduction

Realize More Possibilities with Omada
JetStream 28-Port Gigabit Smart Switch with 24-Port PoE+

Software Defined Networking (SDN) with Cloud Access
Omada's Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network-all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Management features

Quality of Service (QoS) support

Y

Web-based management

Y

ARP inspection

Y

System event log

Y

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

24

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Fiber ports quantity

4

Fiber optic connector

SFP

Network

Networking standards

IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z

10G support

N

Copper ethernet cabling technology

10BASE-T,10BASE-TX

Cable types supported

Cat3,Cat4,Cat5,Cat5e

Port mirroring

Y

Flow control support

Y

Broadcast storm control

Y

Rate limiting

Y

Auto MDI/MDI-X

Y

Spanning tree protocol

Y

Auto-negotiation

Y

VLAN support

Y

Virtual LAN features

MAC address-based VLAN,Protocol-based VLAN,Voice VLAN

Number of VLANs

4000

Optical fiber

Fiber ethernet cabling technology

1000BASE-X

Data transmission

Switching capacity

56 Gbit/s

Forwarding rate

41.7 Mpps

MAC address table

8000 entries

Number of queues

8

Jumbo frames support

Y

Jumbo frames

9000

Security

DHCP features

DHCP relay,DHCP server,DHCP snooping,DHCPv6 client

Access Control List (ACL)

Y

IGMP snooping

Y

Security algorithms

HTTPS,SNMP,SNMPv2,SNMPv3,SSH,SSH-2,SSL/TLS

Loop protection

Y

BPDU filtering/protection

Y

IP-MAC-Port binding

Y

Authentication type

RADIUS

Queue scheduling algorithms

SP, WRR+SP, Weighted Round Robin (WRR)

Multicast features

Multicast support

Y

Design

Rack mounting

Y

Product colour

Black

Number of fans

2 fan(s)

Certification

CE, FCC, RoHS

Performance

Firmware upgradeable

Y

Power

Power consumption (max)

308.6 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)

Y

Power over Ethernet (PoE) ports quantity

24

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 90%

Heat dissipation

1052.94 BTU/h

Weight & dimensions

Width

440 mm

Depth

220 mm

Height

44 mm

Packaging data

Cables included

AC

User guide

Y

Rack mount kit

Y
