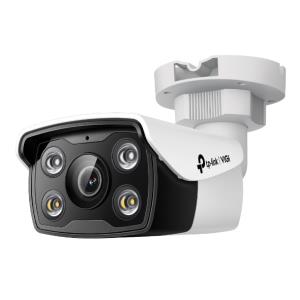

Network Camera Vigi C350 5 Mpix Full-color Bullt With 2.8mm Lens

Introduction

All The Colors, All The Time
5MP Outdoor Full-Color Bullet Network Camera

24/7 Stunning Visual Experience
5MP Super-High Definition
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 5MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.

SmartVid-Smart Video Enhancement
VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including WDR, 3D DNR, Smart IR, and Night Vision.

Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.

Comprehensive AI Detection with Pre-Set Rules Supported
By setting the detection rules in advance, VIGI AI-powered cameras can accurately capture various abnormal events. This will greatly reduce false alarms and cover your specified monitoring needs in different scenarios.

Set customized activity zones around key areas for more focused monitoring.

People & Vehicle Analytics
Quickly find people and vehicles of interest using a series of attributes.

People Analytics
Filter people of interest by various attributes, such as hair length, and clothing, allowing you to improve search efficiency.

Vehicle Analytics
Identify and search for vehicles of interest based on vehicle color and type for targeting meaningful events in a short time.

Active Defense
Warn potential intruders instantly with sound and light when abnormal events.

Every Event is Under Your Control
VIGI camera intelligently detect activities, inform you instantly and response automatically by smart detection and two-way audio.

Outdoor PoE Connection, IP67 Protection
Just connect your camera via an RJ45 cable, then power supply and data transmission are all settled. Waterproof hardware protect stable performance in outdoor scenarios.

Smart Video Coding by H.265+?
Compresses the video size without sacrificing video quality, easing the network load and saving disk space.

?Tile encoding is automatically enabled in H.265 mode when the horizontal resolution exceeds 2688. If a third-party NVR doesn't support tile encoding, it cannot enable H.265 mode. For optimal performance, we recommend using VIGI NVR with VIGI cameras.

Flexible Storage
Local storage is available for each method, as well as onboard storage with an SD card slot (up to 256 GB).

Remote Management
Take full control over your security anytime and anywhere on the VIGI app or client.

Live Views and Real-Time Alerts
Easily check your business security via 24/7 live views. Get notifications as soon as the cameras detect something abnormal.

Easy & Smart Playback
Quickly review and locate certain video clips by event, vehicle, person, time, and more. This will greatly improve event backtracking efficiency and reduce labor costs.

Customized Monitoring Patterns
Based on your monitoring needs, you can freely preset motion zones, adjust the rotation angle, set zoom in & out, customize patrol routes, control patrol routes, and more.

Four-Way Management
Flexibly manage your cameras via the web UI, NVR UI, VIGI app, and VIGI Security Manger for ease and convenience.

One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

Performance

Type

IP security camera

Placement supported

Outdoor

Connectivity technology

Wired

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Built-in light

Yes

Dynamic range

120 dB

Design

Form factor

Bullet

Mounting type

Ceiling

Product colour

Black, White

LED indicators

Yes

Housing material

Plastic

International Protection (IP) code

IP67

Camera

Minimum illumination

0.005 lx

Lens viewing angle, horizontal

109°

Lens viewing angle, vertical

57°

Lens viewing angle, diagonal

128°

Tilt angle range

0 - 90°

Pan range

0 - 360°

Camera shutter speed

1/3 - 1/10000 s

Number of Privacy masking areas

4

Image sensor

Number of sensors

1

Optical sensor size

25.4 / 2.7 mm (1 / 2.7")

Progressive scan

Yes

Sensor type

CMOS

Lens system

Number of lenses

1

Detect distance

63 m

Observe distance

26 m

Recognize distance

12 m

Maximum aperture number

1.6

Identify distance

6 m

Fixed focal length

2.8 mm

Night vision

Night vision

Yes

Night vision distance

30 m

LED type

IR

Number of illumination LEDs

4

Infra-red wavelength

850 nm

Video

Maximum resolution

2880 x 1620 pixels

Total megapixels

5 MP

Video compression formats

H.264, H.264+, H.265, H.265+

Supported graphics resolutions

320 x 240, 352 x 288, 640 x 480 (VGA), 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2688 x 1520, 2880 x 1620

Frame rate

30 fps

Video streaming

Yes

Image quality adjustment

Brightness, Contrast, Saturation, Sharpness

Privacy masking

Yes

Bit rate control

Constant Bit Rate (CBR), Variable Bit Rate (VBR)

Bit rate

256 Kbps - 6 Mbps

Back Light Compensation (BLC)

Yes

Highlight Compensation (HLC)

Yes

Digital Wide Dynamic Range (DWDR)

Yes

Region of Interest (ROI) encoding

Yes

Smart IR

Yes

Audio

Built-in speaker(s)

Yes

Audio system

2-way

Audio input channels

1 channels

Audio output channels

1 channels

Sample rate

8 kHz

Signal-to-Noise Ratio (SNR)

52 dB

Built-in microphone

Yes

Bit rate range

0 - 64 Kbit/s

Network

Ethernet LAN

Yes

Networking standards

IEEE 802.3af, IEEE 802.3at

Supported network protocols

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

Wi-Fi

No

Bluetooth

No

Live view

Yes

Storage

Built-in HDD

No

Card reader integrated

Yes

Compatible memory cards

MicroSD (TransFlash)

Maximum memory card size

256 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

DC-in jack

Yes

Security

Password protection

Yes

Video motion detection

Yes

IP address filtering

Yes

HTTPS encryption

Yes

Intelligent Video Surveillance (IVS) system features

Vehicle detection

Human and vehicle targets classification

Yes

Digest authentication

Yes

Management features

Web browser

Yes

Reset button

Yes

Behavior analysis

Intrusion detection, Line crossing detection, Object removal detection, Region exiting detection

Power

Power source type

DC, PoE

Power consumption (max)

9 W

Power consumption (Power over Ethernet (PoE))

10.5 W

DC output voltage

12

Operational conditions

Operating temperature (T-T)

-30 - 60 °C

Storage temperature (T-T)

-40 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Weight & dimensions

Width

188 mm

Height

71.5 mm

Length

78.5 mm

Packaging data

Package type

Box

Sustainability

Sustainability compliance

Yes

Compliance certificates

BSMI, CE, Federal Communications Commission (FCC), KC, VCCI

Packaging content

Number of cameras

1
