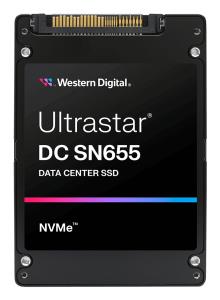

SSD - DC SN655 SFF15 - 61.44TB - Pci-e DP BICS5 ISE

Introduction

Data strategy, not just data storage
Ultrastar NVMe enterprise SSDs continue to be the ideal solution for cloud and server providers who need performant, high-capacity, cost-optimized, read-intensive performance for their data-intensive applications.

Unlocking the Full Potential of Enterprise SSDs
With dual-port redundancy and failover capability, end-to-end data protection and additional enterprise features, Ultrastar DC SN655 NVMe SSDs help ensure your data is secure and available when needed. With high-capacity, low-latency performance reaching up to 1.1M IOPs, storage providers are efficiently able to increase capacity for modern applications processing large unstructured datasets and are reducing time-to-insights of big data and enabling efficient machine learning.

Features
Ultrastar DC SN655 NVMe SSDs includes the next generation Western Digital NVMe 1.4b controller with PCIe Generation 4.0 interface and Western Digital BiCS5 TLC 3D NAND to enable higher capacities and performance at scale for increasingly larger application workloads. Designed and built for the standard 2.5” SSD storage infrastructure, the SN655 includes support for U.2 and U.3 backplanes and features power loss protection and 2.5M MTBF (projected) and 1.0 DW/D with a 5 year limited warranty.

Emerging Workloads
Ultrastar DC SN65x NVMe SSDs are optimized for cloud and scaleout workloads, providing high QoS consistency for the emerging workloads for big data, artificial intelligence, and machine learning that are increasing in size and complexity making them the ideal solution for scaling capacity and maximizing GB/watt.

Features

NVMe version

1.4

SSD capacity

61.4 TB

SSD form factor

U.3

Interface

PCI Express 4.0

NVMe

Yes

Memory type

TLC 3D NAND

Component for

Server/workstation

Hardware encryption

Yes

Read speed

4300 MB/s

Write speed

3150 MB/s

Random read (4KB)

890000 IOPS

Random write (4KB)

290000 IOPS

Read latency

115 µs

Write latency

40 µs

Uncorrectable Bit Error Rate (UBER)

< 1 per 10^15 bits read

Mean time between failures (MTBF)

2500000 h

Windows operating systems supported

Yes

Linux operating systems supported

Yes

Server operating systems supported

Yes

Weight & dimensions

Width

69.8 mm

Depth

100.3 mm

Height

14.9 mm

Weight

147.3 g

Operational conditions

Operating temperature (T-T)

0 - 70 °C

Storage temperature (T-T)

-40 - 85 °C

Other features

Warranty period

5 year(s)
