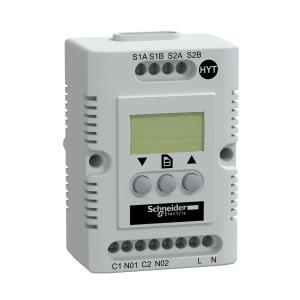

Climasys CC - Electronic Hygrotherm - 200.240 V - Temp -40.80 C - Hr 20.80

Introduction

ClimaSys CC Electronic hygrotherm. Display type by OLED screen. 200V AC to 240 V AC. 85 x 56 x 44 mm. Optional NTC external sensor. Electrical connection by 8 connectors 2.5mm². Mounting mode by screws or clipped. 2 ventilation/heating function. Made in PC. Light grey. Self-extinguishing UL94 (material V0), Protection IP20.

Specifications

Main

range	ClimaSys
product name	ClimaSys CC
product or component type	Electronic hygrotherm
temperature setting range	-40…80 °C
humidity setting range	20…80 %
display type	OLED screen
information displayed	Relative humidity Temperature in °F Temperature in °C

Complementary

input voltage	200...240 V AC
sensor type	Optional NTC external sensor
maximum switching capacity	4 A 230 V AC
electrical connection	8 connectors, clamping capacity: 2.5 mm²
mounting mode	Clipped By screws
height	85 mm external:
width	56 mm external:
depth	44 mm external:
mounting location	35 mm DIN rail Cross rails Spacial upright On mounting plate
ambient air temperature for operation	-40…80 °C
hysteresis	2 K programmed value
hysteresis	3 %
number of outputs	2 ventilation/heating function
material	PC
colour	Light grey
flame retardance	Self-extinguishing conforming to UL94 (material V0)
product certifications	UR
