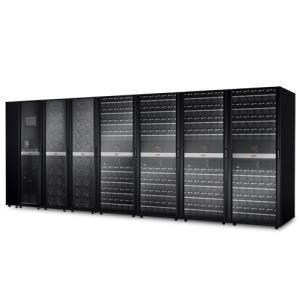

Symmetra Px 500kw Scalable To 500kw With Left Mounted Maintenance Bypass And Distribution

Introduction

InfraStruXure Central compatible
Enables centralized management via APC InfraStruXure® Central.

Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Modular design
Increases adaptability with an open architecture configurable to any IT environment.

Modular design
Modular construction - can be deployed as a non-standby and migrate to a standby (UPS) system.

Dual mains input
Increases availability by allowing the UPS to be connected to two separate power sources.

SmartSlot
Customize UPS capabilities with management cards.

Hot-swappable intelligence modules
Ensures clean, uninterrupted power to protected equipment during Intelligence Module replacement.

Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Configurable for N+1 internal redundancy
Provides high availabilty through redundancy by allowing configuration with one more Power Module than is necessary to support the connected load.

Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Battery modules connected in parallel
Delivers higher availability through redundant batteries.

Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS overload condition or fault.

Audible alarms
Provides notification of changing utility power and UPS conditions.

Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.

Scalable runtime
Allows additional run time to be quickly added as needed.

Features

Output power capacity

500 kVA

Output power

500000 W

Input frequency

40/70 Hz

Emergency Power Off (EPO)

Y

Audible alarm(s)

Y

Battery

Battery recharge time

3.50 h

Hot-swap battery

Y

Design

Product colour

Black

Certification

cUL Listed,CE,EN/IEC 62040-2,EN/IEC 62040-3,EN/IEC 62040-1-1,UL 1778,UL 60950-1,UL Listed

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-15 - 40 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Operating altitude

0 - 999.9 m

Non-operating altitude

0 - 15000 m

Weight & dimensions

Weight

8534.5 kg

Package weight

9480.9 kg

Other features

Battery type

VRLA

Output connections

1x Hard Wire 4-wire (3PH + G) 1x Hard Wire 5-wire (3PH + N + G)

Input connection type

Hard Wire 4-wire (3PH + G), Hard Wire 5-wire (3PH + N + G)

Dimensions (WxDxH)

5200 x 1070 x 1991 mm

Package dimensions (WxDxH)

7100 x 1270 x 2150 mm
