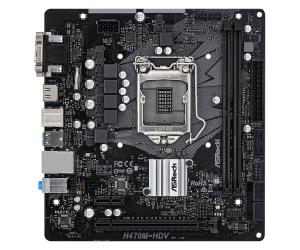

Motherboard H470m-hdv LGA1200 H470 2 X Ddr4 USB 3.1 SATA 3 7.1ch Hd Audio MATX

Introduction

5 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers enhanced performance with the lowest temperature for advanced gamers.

Premium 50A Power Choke
Compared to traditional chokes, ASRock's premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.

HEVC 10-bit Decoding/Encoding
Supports HEVC 10-bit Decoding/Encoding to provide substantially improved video quality and higher bit depth video experience.

Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch

High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Water Pump Header
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.

Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.

Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

Processor

Processor manufacturer

Intel

Processor socket

LGA 1200 (Socket H5)

Compatible processor series

Intel® Celeron®, Intel® CoreT i3, Intel® CoreT i5, Intel® CoreT i7, Intel® CoreT i9, Intel® Pentium®, Intel Pentium G

Supported processor sockets

LGA 1200 (Socket H5)

Memory

Supported memory types

DDR4-SDRAM

Number of memory slots

2

Memory slots type

DIMM

Memory channels

Dual-channel

Non-ECC

Y

Supported memory clock speeds

2133,2400,2666,2800,2933 MHz

Supported memory module capacities

2GB, 4GB, 8GB, 16GB

Maximum internal memory

64 GB

Unbuffered memory

Y

Storage controllers

Supported storage drive types

HDD

Supported storage drive interfaces

SATA III

Number of HDDs supported

4

RAID levels

0,1,5,10

Graphics

Maximum resolution

4096 x 2160 pixels

HDCP

Y

OpenGL version

4.5

DirectX version

12.0

Number of displays supported

3

Internal I/O

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Number of SATA III connectors

4

Front panel audio connector

Y

ATX Power connector (24-pin)

Y

CPU fan connector

Y

Number of chassis fan connectors

2

Chassis intrusion connector

Y

Peripheral (Molex) power connectors (4-pin)

1

EPS power connector (8-pin)

Y

Number of COM connectors

1

TPM connector

Y

Parallel connector

Y

12V power connector

Y

Rear panel I/O ports

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Ethernet LAN (RJ-45) ports

1

PS/2 ports quantity

1

VGA (D-Sub) ports quantity

1

HDMI ports quantity

1

HDMI version

1.4

DVI-D ports quantity

1

Headphone outputs

1

Microphone in

Y

USB connector type

USB Type-A

Network

Ethernet LAN

Y

Ethernet interface type

Gigabit Ethernet

LAN controller

Realtek RTL8111H

Wake-on-LAN ready

Y

Wi-Fi

N

Features

Motherboard chipset

Intel H470

Audio chip

Realtek ALC897

Audio output channels

7.1 channels

PC health monitoring

CPU, Fan, Temperature, Voltage

Component for

PC

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

Cooling type

Active

Number of mounting holes

6

Windows operating systems supported

Windows 10 x64

Certification

FCC, CE, ErP/EuP ready

Expansion slots

PCI Express x1 (Gen 3.x) slots

1

PCI Express x16 (Gen 3.x) slots

1

BIOS

BIOS type

UEFI AMI

BIOS memory size

128 Mbit

ACPI version

6.0

System Management BIOS (SMBIOS) version

2.7

Weight & dimensions

Width

226 mm

Depth

188 mm

Packaging content

Cables included

SATA

Drivers included

Y

Bundled software

- ASRock Motherboard Utility (A-Tuning) - ASRock XFast LAN
