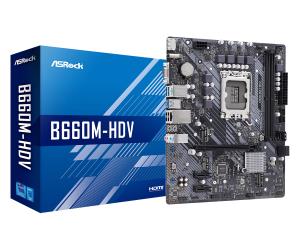

Motherboard B660m-hdv LGA1700 Intel B660 4 USB 3.2 SATA 3 7.1ch Hd Audio MATX

Introduction

Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

High Speed M.2 Solution
This motherboard is capable of accomadating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Intel Gigabit LAN
Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.

3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.

Premium Power Choke
Compared to traditional chokes, ASRock's premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.

Processor

Processor manufacturer

Intel

Processor socket

LGA 1700

Compatible processor series

Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®

Maximum number of SMP processors

1

Memory

Supported memory types

DDR4-SDRAM

Number of memory slots

2

Memory slots type

DIMM

Memory channels

Dual-channel

ECC

Y

Non-ECC

Y

Supported memory clock speeds

5066 MHz

Maximum internal memory

64 GB

Unbuffered memory

Y

Storage controllers

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2,SATA III

RAID support

Y

RAID levels

0,1,5,10

Graphics

Maximum resolution

7680 x 4320 pixels

HDCP

Y

Internal I/O

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Number of SATA III connectors

4

Front panel audio connector

Y

ATX Power connector (24-pin)

Y

CPU fan connector

Y

Number of chassis fan connectors

2

Chassis intrusion connector

Y

Number of COM connectors

1

TPM connector

Y

12V power connector

Y

Rear panel I/O ports

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

Ethernet LAN (RJ-45) ports

1

PS/2 ports quantity

1

VGA (D-Sub) ports quantity

1

HDMI ports quantity

1

HDMI version

2.1

DisplayPorts quantity

1

DisplayPort version

1.4

Network

Ethernet LAN

Y

Ethernet interface type

Gigabit Ethernet

LAN controller

Intel® I219-V

Wake-on-LAN ready

Y

Wi-Fi

N

Features

Motherboard chipset

Intel B660

Audio chip

Realtek ALC887 / Realtek ALC897

Audio output channels

7.1 channels

PC health monitoring

CPU, Fan, Temperature, Voltage

Component for

PC

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

Windows operating systems supported

Windows 10 x64,Windows 11 x64

Expansion slots

PCI Express x1 (Gen 3.x) slots

2

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

2

BIOS

BIOS type

UEFI AMI

BIOS memory size

128 Mbit

ACPI version

6.0

System Management BIOS (SMBIOS) version

2.7

Weight & dimensions

Width

244 mm

Depth

201 mm

Packaging content

Cables included

SATA

Drivers included

Y
