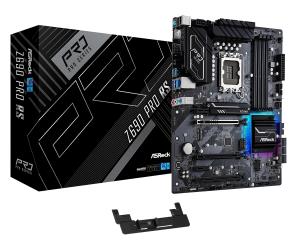

Motherboard Z690 Pro Rs LGA1200 Intel Z690 4 X Ddr4 USB 3.2 SATA 3 7.1ch Hd Audio

Motherboard Z690 Pro Rs LGA1200 Intel Z690 4 X Ddr4 USB 3.2 SATA 3 7.1ch Hd Audio

$230,29
Part Number: 90-MXBGY0-A0UAYZ


To order contact us;

Computer Sources,Inc.
21B Millar Court
Paramus
NJ 07652
USA
Mail: mail1235@optonline.net

Minimum order amount $2500.00

Product Details

Introduction

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

PCIe 5.0 + Surface-Mount Tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.

Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

ASRock Graphics Card Holder
Install your heavy graphics card on the holder; connect it to your motherboard and chassis with screws. Flexibly slide up and down to perfectly adjust the height required for your graphics card in place.

POLYCHROME RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

High Speed M.2 Solution
This motherboard is capable of accomadating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you'll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Front USB 3.2 Gen2x2 Type-C
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.

BIOS Flashback
Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.

M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.

Processor

Processor manufacturer

Intel

Processor socket

LGA 1700

Compatible processor series

Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7

Maximum number of SMP processors

1

Memory

Supported memory types

DDR4-SDRAM

Number of memory slots

4

Memory slots type

DIMM

Memory channels

Dual-channel

ECC

Y

Maximum internal memory

128 GB

Storage controllers

Supported storage drive interfaces

M.2,SATA III

Number of storage drives supported

11

RAID support

Y

RAID levels

0,1,5,10

Graphics

HDCP

Y

Internal I/O

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Number of SATA III connectors

8

Front panel audio connector

Y

ATX Power connector (24-pin)

Y

CPU fan connector

Y

Peripheral (Molex) power connectors (4-pin)

1

EPS power connector (8-pin)

Y

Thunderbolt headers

1

RGB LED pin header

Y

Rear panel I/O ports

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

Ethernet LAN (RJ-45) ports

1

PS/2 ports quantity

1

HDMI ports quantity

1

DisplayPorts quantity

1

DisplayPort version

1.4

Headphone outputs

1

Microphone in

Y

Network

Ethernet LAN

Y

Ethernet interface type

2.5 Gigabit Ethernet

LAN controller

Dragon RTL8125BG

Wake-on-LAN ready

Y

Wi-Fi

N

Features

Motherboard chipset

Intel Z690

Audio chip

Realtek ALC897

Audio output channels

7.1 channels

Component for

PC

Motherboard form factor

ATX

Motherboard chipset family

Intel

Windows operating systems supported

Windows 10 x64,Windows 11 x64

Expansion slots

PCI Express x1 (Gen 3.x) slots

2

PCI Express x16 (Gen 3.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

BIOS

BIOS type

UEFI AMI

ACPI version

6.0

System Management BIOS (SMBIOS) version

2.7

Weight & dimensions

Width

305 mm

Depth

244 mm
