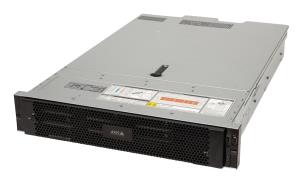

S1264 Rack 64tb

Introduction

This out-of-the-box, ready-to-use recording server features powerful components for top-class performance. And it’s easy to scale and expand your system as your needs grow.

Top class performance and reliability
Featuring powerful components, this high-performance recording server offers support for powerful applications and features. Thanks to a RAID controller with high cache memory, it minimizes the risk of recording gaps, downtime, and data loss. This secure device complies with government policies and uses a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified to ensure secure storage of all cryptographic keys and certificates. And, if the system crashes, built-in operating system recovery stored on the device ensures data can be quickly recovered.

Flexible, scalable solution
AXIS S1264 is ideal for demanding applications. With great scalability, it’s easy to expand your system as it grows without the need for additional hardware. It includes 64 AXIS Camera Station licenses. And you can expand your system up to a recording bitrate of 625 Mbit/s (approximately 80 channels). Plus, with multiple RAID configurations (levels 0/1/5/6/10), it provides flexible system storage with easy expansion and redundancy based on your specific requirements. AXIS S1264 is available in three variants with a choice of storage: either 24 TB, 64 TB, or 144 TB. It features a total of 12 hard drive bays so depending on the variant up to 6 additional hard drive bays are available for optional accessories.

Quality and ease-of-use
This reliable recording server comes preloaded with AXIS Camera Station licenses and pre-configured software, so there’s no need to spend time selecting, configuring, and testing hardware. Plus, with services such as Keep Your Heard Drive and Next Business Day Onsite Support, as well as a 5-year warranty, you can depend on Axis for first-class quality, reliability, and support. Part of an Axis end-to-end solution, all supported products are available in one price list for a one-stop-shop experience. Furthermore, with an intuitive installation wizard and AXIS Recorder Toolbox, AXIS S1264 eliminates installation problems to help ensure every customer installation is trouble-free.

Storage

RAID support

Y

RAID levels

0, 1, 5, 6, 10

Total installed storage capacity

64 TB

Installed storage drive type

HDD

Supported storage drive types

HDD

Processor

Processor manufacturer

Intel

Processor family

Intel Xeon Silver

Memory

Internal memory

64000 GB

Network

Ethernet LAN

Y

Ports & interfaces

USB port

Y

USB 2.0 ports quantity

2

VGA (D-Sub) ports quantity

1

Ethernet LAN (RJ-45) ports

2

Design

Chassis type

Rack (2U)

Product colour

Grey

Performance

Type

Storage server

Backup function

N

Software

Operating system installed

Windows 10 IoT Core

Power

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Weight & dimensions

Width

721.6 mm

Depth

482 mm

Height

87 mm

Weight

22.9 kg

Operational conditions

Operating temperature (T-T)

10 - 35 °C

Operating relative humidity (H-H)

20 - 80%

Storage temperature (T-T)

-40 - 65 °C
