Slp-tx220g - Label Printer - Direct Thermal - USB / Parallel

Introduction

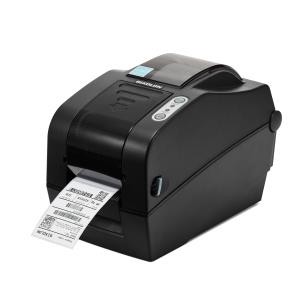

SLP-TX220 2” thermal transfer desktop label printer with optional Bluetooth or Wi-Fi is perfect for a range of applications from wrist banding, order labelling to barcode printing.

The SLP-TX220 is the world’s first 2” thermal transfer desktop printer with built-in Bluetooth with MFi iAP2 certification. Teamed with a smart Bluetooth Auto Switch allowing easy switching from iOS settings to standard Bluetooth mode.

Printing at speeds up to 6ips (152mm/second) and high resolution 203dpi print quality. The SLP-TX220 provides fast data processing speeds for various types of labels. Designed with Autocutter and Peeler options, the SLP-TX220 features a space saving 74mm ribbon and easy paper loading, alongside an adjustable paper guide.

Featuring a Dual interface, with USB & Serial as standard and optional USB, Ethernet and WLAN* or USB, WLAN & Bluetooth** options. The SLP-TX220 is fully compatible with market-leading programming languages such as SLCS, BPL-Z™ and BPL-E™.

BIXOLON Label Artist™ completes the package, this free-of-charge label customisation software, supporting database connection as well as text, drawing lines and boxes, alongside a range of graphics and 1D/2D barcode printing.

*WLAN: 802.11b/g/n USB dongle type (not included in the package).
** Bluetooth: Built-in type, MFi iAP2 certified (Consensus required).

Printing

Print technology

Thermal transfer

Colour

No

Maximum resolution

203 x 203 DPI

Print speed

152 mm/sec

Maximum printing width

5.4 cm

Maximum print height

2 m

Paper handling

Ribbon width

11 cm

Ribbon length

74 m

Maximum label width

6 cm

Maximum roll diameter

13 cm

Media thickness

0.06 - 0.20 mm

Ports & interfaces

Connectivity technology

Wired

Ethernet LAN

No

Wi-Fi

No

USB port

Yes

USB 2.0 ports quantity

1

RS-232 ports

1

Performance

Internal memory

64 MB

Flash memory

128 MB

Built-in barcodes

1D, 2D

Design

Product colour

Black

Display

No

Technical details

Harmonized System (HS) code

84433210

Sustainability certificates

ENERGY STAR

Power

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

System requirements

Windows operating systems supported

Yes

Linux operating systems supported

Yes

Operational conditions

Operating relative humidity (H-H)

10 - 80%

Storage relative humidity (H-H)

10 - 90%

Operating temperature (T-T)

5 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Weight & dimensions

Width

144 mm

Depth

252 mm

Height

173 mm

Weight

1.71 kg
