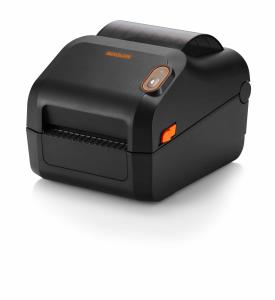

Xd3-40d - Label Printer - Thermal - 118mm - Ethernet / USB/ Serial

Xd3-40d - Label Printer - Thermal - 118mm - Ethernet / USB/ Serial

$293,28
Part Number: XD3-40DEK


To order contact us;

Computer Sources,Inc.
21B Millar Court
Paramus
NJ 07652
USA
Mail: mail1235@optonline.net

Minimum order amount $2500.00

Product Details

Introduction

The XD3-40d is a 4-inch (118mm) Direct Thermal Desktop Barcode and Label Printer featuring a compact design, key industry features and competitive pricing, ideal for labelling applications within Manufacturing, Retail, Warehousing and Logistics markets. The XD3-40d standard model offers quick data processing and print speeds up to 5 ips (127mm/sec) at 203 dpi to produce high quality text, graphics and barcodes to labelling media.

Supporting a stand-alone configuration with a visual LED and a media roll diameter up to 127mm. The XD3-40d offering easy paper loading with adjustable paper guide and plus holder, alongside an optional peeler, plus an external paper supply. For added simplicity, the label printer also offers simple toolless maintenance of the roller and print head.

Available with USB interface as standard and optional USB V2.0 + Serial + Ethernet. The XD3-40d is compatible with market-leading programming languages including SLCS, BPL-ZT and BPL-ET, while supporting Smart Switch Programming Languages to allow for seamless integration into legacy and current installations. The XD3 series is also accompanied with comprehensive SDKs for Windows and Linux, alongside compatibility with label design software including BIXOLON's Label Artist-IIT and BarTender®. While backed by a 2 year warranty as standard.

Printing

Print technology

Direct thermal

Print speed

127 mm/sec

Maximum printing width

10.4 cm

Minimum print length

100 cm

Paper handling

Ribbon width

11 cm

Ribbon length

300 m

Maximum label width

11.8 cm

Maximum roll diameter

12.7 cm

Media thickness

0.06 - 0.2 mm

Ports & interfaces

Connectivity technology

Wired

USB port

Y

Performance

Page description languages

BPL

Internal memory

64 MB

Flash memory

128 MB

Built-in barcodes

1D,2D,AZTECCODE,CODABAR (NW-7),Code 11,Code 39,EAN13,EAN8,GS1-128,Industrial 2/5,Interleaved 2/5,MaxiCode,MicroPDF417,QR Code,TLC39,UPC-A,UPC-E

Design

Product colour

Black

Power

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

System requirements

Windows operating systems supported

Y

Linux operating systems supported

Y

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Weight & dimensions

Width

181 mm

Depth

222 mm

Height

168 mm

Weight

1.7 kg
