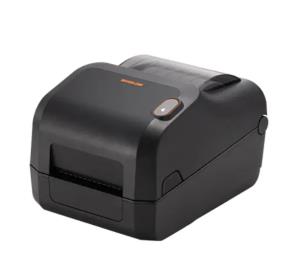

Xd3-40t - Label Printer - Thermal - 118mm - Ethernet / USB/ Serial

Xd3-40t - Label Printer - Thermal - 118mm - Ethernet / USB/ Serial

$344,11
Part Number: XD3-40TEK


To order contact us;

Computer Sources,Inc.
21B Millar Court
Paramus
NJ 07652
USA
Mail: mail1235@optonline.net

Minimum order amount $2500.00

Product Details

Introduction

The XD3-40t, a 4-inch (118mm) cost-effective Direct Thermal or Thermal Transfer Desktop Barcode and Label printer. Featuring a compact, clamshell design paired with high reliability which is ideal for labelling applications within the Manufacturing, Retail, Transport and Logistics and Healthcare industries.

Supporting data processing and print speed up to 5 ips (127mm/sec) to produce high quality 203dpi text, graphics and barcodes paired with memory space of up to 64MB SDRAM, 125MB Flash Memory. Multiple connectivity options including USB 2.0 as standard, plus optional USB + Serial + Ethernet. Flexible core ribbon handling for 1/2-inch and 1-inch options (74m and 300m). While accompanied with an optional field-installable Peeler and an external paper supply, the label printer offers an adjustable paper guide plus holder and space for a media roll diameter of up to 127mm.

The XD3-40t is compatible with market-leading programming languages including SLCS™, BPL-Z™ and BPL-E™ and provides Smart Switch language programming without having to set the mode. Harmonizing with label design software including BIXOLON’s Label Artist-II™ and BarTender® UltraLite for BIXOLON. The XD3-40t also allows easy printer management and support with a single button setup with visual LED, comprehensive online ‘How to’ videos and an onboard QR code with direct links to online support resources. All complimented by a 2-year warranty as standard.

Printing

Print technology

Thermal transfer

Print speed

127 mm/sec

Print speed

5 lpm

Maximum printing width

10.4 cm

Maximum print height

100 cm

Margin depth settings

Fixed

Paper handling

Ribbon width

11 cm

Ribbon length

300 m

Maximum label width

11.8 cm

Maximum roll diameter

12.7 cm

Media thickness

0.06 - 0.2 mm

Ports & interfaces

Connectivity technology

Wireless

USB port

Y

Performance

Page description languages

BPL, SLCS

Internal memory

64 MB

Flash memory

128 MB

Built-in barcodes

1D, Codablock, Code 11, Code 39, Code 49, Code 93, Code-128 Codabar Library, Data Matrix, EAN13, EAN8, GS1 DataBar, IMB, Industrial 2/5, Interleaved 2/5, Logmars, MSI, MaxiCode, MicroPDF417, PDF417, POSTNET, Plessey, QR Code, Standard 2/5, TLC39, UPC-A, UPC-E

Design

Product colour

Black

Display

N

Power

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

System requirements

Windows operating systems supported

Y

Mac operating systems supported

Y

Linux operating systems supported

Y

Operational conditions

Operating relative humidity (H-H)

10 - 80%

Storage relative humidity (H-H)

10 - 90%

Operating temperature (T-T)

5 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Weight & dimensions

Width

210 mm

Depth

284 mm

Height

186 mm

Weight

2.6 kg
