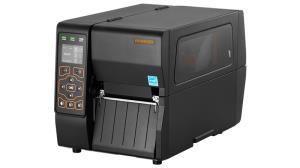

Xt3-40 - Label Printer - Thermal - 114mm - Ethernet / Serial

Introduction

Adding a new entry-level 4-inch (114 mm) printing solution to BIXOLON's industrial label printer lineup, XT3-40 is designed with a familiar feel to the XT5-40 Series. The XT3-40 supports fast data processing and print speeds of up to 8 ips (203 mm/sec) at 203 dpi. Featuring a compact and robust design, double-holding door, and side-loading supplier path, the XT3-40 allows easy printer installation within narrow environments.

User-Friendly Design

- Compact and robust design
- Rugged all-metal case and double folding door
- Side-loading supplies path for simplified media and ribbon installation
- 2.4 inch full colour LCD display
- Peeler and Auto Cutter, and factory-installed Rewinder with Peeler options
- Toolless maintenance of roller and print head
- Supporting up to 450 m ribbon length

Industrial-Standard Performance

- Fast data processing and print speeds of up to 8 ips (203 mm/sec)
- Optional 203 or 300 dpi high resolutions
- Fully compatible with market-leading programming languages
- Dual-band WLAN (5 GHz and 2.4 GHz) and Bluetooth V5.2 (MFi certified)

Secure and Efficient Management

- Twin funtion™ supported: Copy printer settings and data via USB
- Compatible with label design software;
- BIXOLON’s Label Artist and Seagull's BarTender
- XPM™ & XCM™ - Web-based printer management software and connection app.

Printing

Print technology

Thermal transfer

Maximum resolution

203 x 203 DPI

Print speed

203 mm/sec

Maximum printing width

10.8 cm

Minimum print length

4 m

Paper handling

Ribbon width

11 cm

Ribbon length

450 m

Maximum label width

11.4 cm

Maximum roll diameter

20.3 cm

Media thickness

0.06 - 0.25 mm

Ports & interfaces

Connectivity technology

Wired

Ethernet LAN

Yes

Wi-Fi

No

Bluetooth

No

USB port

Yes

RS-232 ports

1

Performance

Page description languages

BPL, SLCS

Internal memory

128 MB

Flash memory

128 MB

Built-in barcodes

1D, 2D

Design

Product colour

Black

Display

LCD

Display diagonal

6.1 cm (2.4")

Colour display

Yes

Control type

Buttons

Power

AC input voltage

100-240 V

AC input frequency

50-60 Hz

System requirements

Windows operating systems supported

Yes

Mac operating systems supported

Yes

Mobile operating systems supported

Android, iOS

Linux operating systems supported

Yes

Operational conditions

Operating relative humidity (H-H)

10 - 80%

Storage relative humidity (H-H)

10 - 90%

Operating temperature (T-T)

5 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Weight & dimensions

Width

240 mm

Depth

430.5 mm

Height

276.7 mm

Weight

9.3 kg

Packaging content

Cables included

USB
