Product Details
Introduction

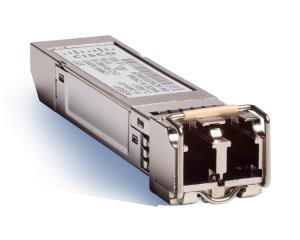

The 1000BASE-SX SFP, compatible with the IEEE 802.3z 1000BASE-SX standard, operates on legacy 50 µm multimode fiber links up to 550 m and on 62.5 µm Fiber Distributed Data Interface (FDDI)-grade multimode fibers up to 220 m. It can support up to 1km over laser-optimized 50 µm multimode fiber cable.
Performance
SFP transceiver type
Fiber optic
Maximum data transfer rate
1000 Mbit/s
Interface type
SFP
Multi-mode fiber (MMF) supported
Y
Fiber optic connector
LC
Fiber cable diameters supported (core/cladding)
50/125,62.5/125 µm
SFP transceiver standard
SX
Maximum transfer distance
10000 m
Wavelength
850 nm
Networking standards
IEEE 802.3z
Auto MDI/MDI-X
N
Fiber ports quantity
2
Features
Hot-swap
Y
Power
Power consumption (typical)
1.5 W
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-40 - 85 °C
Weight & dimensions
Width
13.4 mm
Depth
56.5 mm
Height
8.5 mm
Weight
75 g
