Wireless Access Point Dwl-8620ap Unified Dual-band Ac2600 Wave 2 White

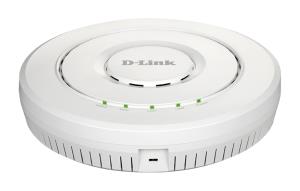

Wireless Access Point Dwl-8620ap Unified Dual-band Ac2600 Wave 2 White

$497,80
Part Number: DWL-8620AP


To order contact us;

Computer Sources,Inc.
21B Millar Court
Paramus
NJ 07652
USA
Mail: mail1235@optonline.net

Minimum order amount $2500.00

Product Details

Introduction

Enjoy Faster Business with Wave 2
The DWL-8620AP is designed for medium to large-scale Wi-Fi networks, delivering fast Wave 2 wireless speeds. It's highly manageable, it fits into any existing network, and can be scaled to meet future wireless demands.

Greater Speeds and Reliable Connectivity
Utilise the full potential of 802.11ac Wave 2. Provide faster connectivity with combined data rates of up to 2.5 Gbps2.

It also supports Link Aggregation, which allows two Gigabit Ethernet ports to be linked together to act as a single port to double the available bandwidth and maximise the access point's overall throughput.

Increase Network Efficiency
The DWL-8620AP's 4 x 4 MU-MIMO takes full advantage of all streams to serve more wireless clients, dramatically improving wireless performance.

MU-MIMO (Multi-User Multiple Input Multiple Output) simultaneously communicates with multiple clients using multiple antennas. This allows the access point to utilise the spectrum more efficiently and significantly increase the network capacity.

Rapid Deployments
It can be ceiling mounted or wall mounted to provide the best wireless coverage. The built-in Power over Ethernet (PoE) port makes deployments faster and means it can be installed in areas without power outlets.

Robust Management
When working in conjunction with D-Link Unified Wireless Controllers (DWC-1000, and DWC-2000), multiple DWL-8620AP units in the Wi-Fi network can be easily and efficiently centrally managed.

Automatic Radio Frequency (RF) Management
Radio Frequency (RF) resource management allows wireless coverage to be managed automatically, providing the best possible coverage for wireless clients.

When access points are deployed in close proximity to each other, there may be interference between channels if RF management is not implemented. When the DWL-8620AP senses a neighbouring AP nearby, it will automatically select a non-interfering channel.

This greatly reduces RF interference and allows you to deploy APs more densely. To further minimise interference, when a nearby AP is on the same channel, the DWL-8620AP will automatically adjust its transmission power. If an AP goes down, others will increase their transmission power to expand coverage.

Band Steering
It places clients on the optimal wireless band to avoid congestion and allows for smooth streaming of video, seamless browsing, and fast downloads speeds.

Airtime Fairness
Ensures equal airtime given to each client. Increases performance even if slower devices are connected.

802.11k Fast Roaming
Allows the wireless client to roam seamlessly between access points.

802.1p Quality of Service (QoS)
Supports 802.1p QoS for enhanced throughput and better performance of time-sensitive traffic like VoIP and streaming DSCP.

Wi-Fi Multimedia (WMM)
In the event of network congestion, time-sensitive traffic can be given priority ahead of other traffic.

Features

2.4 GHz

Y

5 GHz

Y

Maximum data transfer rate

2533 Mbit/s

Maximum data transfer rate (2.4 GHz)

800 Mbit/s

Maximum data transfer rate (5 GHz)

1733 Mbit/s

Ethernet LAN data rates

10,100,1000 Mbit/s

Networking standards

IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11k,IEEE 802.11n,IEEE 802.1s,IEEE 802.3,IEEE 802.3ab,IEEE 802.3at,IEEE 802.3u

Automatic channel selection

Y

MIMO

Y

Wi-Fi Multimedia (WMM)/(WME)

Y

Fast roaming

Y

Band steering

Y

Airtime Fairness (ATF)

Y

Quality of Service (QoS) support

Y

Security

Security algorithms

AES,TKIP,WPA,WPA-Enterprise,WPA2,WPA2-Enterprise

MAC address filtering

Y

Number of SSID supported

32

Auto Wireless Distribution System (WDS)

Y

Protocols

Management protocols

SNMP v1/v2c/v3

Management features

Command-line interface (CLI)

Y

Ports & interfaces

Ethernet LAN (RJ-45) ports

2

DC-in jack

Y

Power

Power over Ethernet (PoE)

Y

AC input voltage

12 V

Input current

2.5 A

Power consumption (max)

24.24 W

Design

Product colour

White

Housing material

Plastic

Certification

CE,

Antenna

Antenna type

Internal

Antenna direction type

Omni-directional

Antennas quantity

2

Antenna gain level (max)

4 dBi

Operational conditions

Operating relative humidity (H-H)

0 - 40%

Operating temperature (T-T)

-20 - 65 °C

Storage temperature (T-T)

10 - 90 °C

Storage relative humidity (H-H)

5 - 95%

Technical details

Shipping (inner) case length

44.9 cm

Shipping (inner) case width

31.2 cm

Shipping (inner) case height

32.8 cm

Shipping (inner) case net weight

7.33 kg

Products per shipping (inner) case

5 pc(s)

Pallet gross weight (air)

222.3 kg

Master (outer) cases per pallet (air)

24 pc(s)

Products per pallet (air)

120 pc(s)

Pallet gross length

110 cm

Pallet gross width

120 cm

Pallet height (air)

144.7 cm

Pallet gross weight (sea)

272 kg

Master (outer) cases per pallet (sea)

30 pc(s)

Products per pallet (sea)

150 pc(s)

Pallet height (sea)

177.5 cm

Shipping (inner) case gross weight

8.2 kg

Weight & dimensions

Width

220 mm

Depth

220 mm

Height

47 mm

Weight

790 g

Packaging data

Number of products included

1 pc(s)

Quick start guide

Y

Package width

295 mm

Package depth

296 mm

Package height

94 mm

Package weight

1.47 kg
