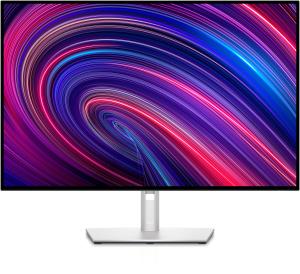

Monitor - U3023e Ultrasharp - 30in - 2560x1600 - Wqxga@60hz - IPS

Introduction

Make more possible with this 30" 16:10 monitor with wide color coverage, multitasking features and a host of connectivity ports.

Display

Display diagonal

76.2 cm (30")

Display resolution

2560 x 1600 pixels

HD type

WQXGA

Native aspect ratio

16:10

Display technology

LCD

Panel type

IPS

Backlight type

LED

Touchscreen

N

Display brightness (typical)

350 cd/m²

Response time

8 ms

Anti-glare screen

Y

Screen shape

Flat

Supported video modes

480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Contrast ratio (typical)

1000:1

Maximum refresh rate

60 Hz

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Display number of colours

1.07 billion colours

Response time (fast)

5 ms

Pixel pitch

0.2505 x 0.2505 mm

Pixel density

101.4 ppi

Horizontal scan range

30 - 113 kHz

Vertical scan range

56 - 76 Hz

Viewable size, horizontal

64.1 cm

Viewable size, vertical

40.1 cm

Display diagonal (metric)

75.62 cm

DDC/CI

Y

Surface hardness

3H

RGB colour space

sRGB

sRGB coverage (typical)

100%

Heat dissipation (typical)

90.76 BTU/h

Performance

NVIDIA G-SYNC

N

AMD FreeSync

N

Flicker-free technology

Y

Low Blue Light technology

Y

Multimedia

Built-in speaker(s)

N

Built-in camera

N

Design

Market positioning

Graphics design

Product colour

Silver

Front bezel colour

Black

Feet colour

Silver

Heavy metals free

Hg (mercury)

Compliance industry standards

ENERGY STAR certified Monitor. EPEAT registered where applicable. TCO Certified & TCO Certified Edge. RoHS Compliant. BFR/PVC Free monitor Meets NFPA 99 leakage current requirements. Arsenic-Free glass and Mercury-Free for the panel only.

Ports & interfaces

Built-in USB hub

Y

USB hub version

3.2 Gen 2 (3.1 Gen 2)

USB upstream port type

USB Type-C

Number of upstream ports

2

USB Type-A downstream ports quantity

4

USB Type-C downstream ports quantity

1

USB Power Delivery

Y

USB Power Delivery up to

90 W

HDMI

Y

HDMI ports quantity

1

HDMI version

1.4

DisplayPorts quantity

2

Audio output

Y

Headphone out

Y

Headphone outputs

1

Headphone connectivity

3.5 mm

HDCP

Y

AC (power) in

Y

Ergonomics

VESA mounting

Y

Panel mounting interface

100 x 100 mm

Cable lock slot

Y

Height adjustment

Y

Height adjustment

15 cm

Pivot

Y

Pivot angle

-90 - 90°

Swivelling

Y

Swivel angle range

-30 - 30°

Tiltable

Y

Tilt angle range

-5 - 21°

On Screen Display (OSD)

Y

Plug and Play

Y

Power

Energy efficiency class (SDR)

F

Energy consumption (SDR) per 1000 hours

27 kWh

Power consumption (typical)

26.6 W

Power consumption (standby)

0.3 W

Power consumption (max)

210 W

Power consumption (off)

0.2 W

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Power supply type

Internal

Energy efficiency scale

A to G

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

10 - 80%

Storage relative humidity (H-H)

5 - 90%

Operating altitude

0 - 5000 m

Non-operating altitude

0 - 12192 m

Packaging content

Stand included

Y

Cables included

AC, DisplayPort, USB Type-C, USB Type-C to USB Type-A

Quick start guide

Y

Weight & dimensions

Width (with stand)

655.9 mm

Depth (with stand)

230 mm

Height (with stand)

472.7 mm

Weight (with stand)

11.1 kg

Width (without stand)

65.6 cm

Depth (without stand)

5.3 cm

Height (without stand)

41.9 cm

Bezel width (side)

7.3 mm

Bezel width (top)

7.3 mm

Bezel width (bottom)

1.05 cm

Packaging data

Package weight

15.1 kg

Sustainability

Sustainability certificates

ENERGY STAR, EPEAT Gold, RoHS

Doesn't contain

Arsenic, PVC/BFR

Logistics data

Harmonized System (HS) code

85285210

Other features

On/off switch

Y

DCI-P3 coverage

95%

Picture-by-Picture (PbP)

Y

Maximum resolution

2560 x 1600 pixels

RJ-45 ports quantity

1

Power management

Y
