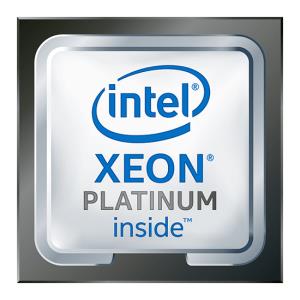

Intel Xeon Platinum 8270 2.7g 26c/52t 10.4gt/s 35.75m Cache Turbo Ht (205w) Ddr4-2933ck

Introduction

The Intel Xeon® Platinum 8270 2.70GHz Twenty Six Core Processor enhances the performance and the speed of your system. Additionally, the Virtualization Technology enables migration of more environments. It supports enhanced SpeedStep® technology that allows tradeoffs to be made between performance and power consumption.

Its Thermal Monitoring Technologies protect the processor package and the system from thermal failure through several thermal management features. The VT-x with Extended Page Tables (EPT) also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Packed with more features, the Xeon Platinum 8270 2.70GHz Twenty Six Core Processor is the ideal choice for virtually all of your data demanding or standard enterprise infrastructure applications.

Processor

Processor manufacturer

Intel

Processor generation

2nd Generation Intel® Xeon® Scalable

Processor model

8270

Processor base frequency

2.7 GHz

Processor family

Intel® Xeon® Platinum

Processor cores

26

Processor socket

LGA 3647 (Socket P)

Component for

Server/workstation

Processor lithography

14 nm

Processor threads

52

Processor operating modes

64-bit

Processor boost frequency

4 GHz

Processor cache

35.75 MB

Thermal Design Power (TDP)

205 W

Box

N

Cooler included

N

Processor codename

Cascade Lake

Processor ARK ID

192482

Memory

Maximum internal memory supported by processor

1024 GB

Memory types supported by processor

DDR4-SDRAM

Memory clock speeds supported by processor

2933 MHz

Memory channels

Hexa-channel

ECC

Y

Graphics

On-board graphics card

N

Discrete graphics card

N

On-board graphics card model

Not available

Discrete graphics card model

Not available

Features

Execute Disable Bit

Y

Market segment

Server

Maximum number of PCI Express lanes

48

PCI Express slots version

3.0

Supported instruction sets

AVX-512

Scalability

S8S

Embedded options available

N

PCI Express CEM revision

3.0

Harmonized System (HS) code

8542310001

Processor special features

Intel® Hyper Threading Technology (Intel® HT Technology)

Y

Intel® Turbo Boost Technology

2.0

Intel® AES New Instructions (Intel® AES-NI)

Y

Enhanced Intel SpeedStep Technology

Y

Intel Trusted Execution Technology

Y

Intel® Speed Shift Technology

Y

Intel VT-x with Extended Page Tables (EPT)

Y

Intel TSX-NI

Y

Intel 64

Y

Intel Virtualization Technology (VT-x)

Y

Intel Virtualization Technology for Directed I/O (VT-d)

Y

Intel Turbo Boost Max Technology 3.0

N

AVX-512 Fused Multiply-Add (FMA) units

2

Intel® Deep Learning Boost (Intel® DL Boost)

Y

Intel® Resource Director Technology (Intel® RDT)

Y

Intel® Volume Management Device (VMD)

Y

Intel® Run Sure Technology

Y

Mode-based Execute Control (MBE)

Y

Intel® vPro™ Platform Eligibility

Y

Intel Speed Select Technology (SST)

N

Intel® Speed Select Technology - Base Frequency (Intel® SST-BF)

N

Intel® Optane™ DC Persistent Memory technology

Y

Operational conditions

Tcase

84 °C

Technical details

Launch date

Q2'19

Product type

Processor

Status

Launched

Memory speed (max)

2933 MHz

Number of UPI links

3

Weight & dimensions

Processor package size

76.0 x 56.5 mm

Other features

Compatibility

- PowerEdge R740XD - PowerEdge R840 - PowerEdge R940 - PowerEdge MX740C - PowerEdge R740 - PowerEdge R940xa - PowerEdge MX840C - Precision Workstation R7920 - PowerEdge C6420 - PowerEdge R640
