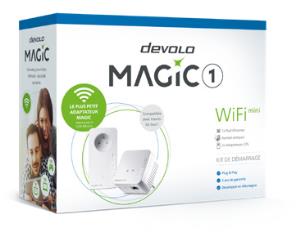

Magic 1 Wi-Fi mini Starter Kit

Magic 1 Wi-Fi mini Starter Kit

$105,54
Part Number: 8565


To order contact us;

Computer Sources,Inc.
21B Millar Court
Paramus
NJ 07652
USA
Mail: mail1235@optonline.net

Minimum order amount $2500.00

Product Details

Performance

Maximum data transfer rate

1200 Mbit/s

Ethernet LAN

Y

Ethernet LAN interface type

Fast Ethernet

Ethernet LAN data rates

10,100 Mbit/s

Copper ethernet cabling technology

10BASE-T, 100BASE-TX

Wi-Fi

Y

Top Wi-Fi standard

Wi-Fi 4 (802.11n)

Wi-Fi standards

802.11b, 802.11g, Wi-Fi 4 (802.11n)

WLAN data transfer rates supported

300 Mbit/s

Networking standards

IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Built-in power socket

N

Modulation

64-QAM, 256-QAM, 1024-QAM, 4096-QAM, BPSK, DSSS, OFDM, QPSK

Security algorithms

128-bit AES, WPA, WPA2, WPS, WPS-PBC, WPS-PIN

Maximum operating distance

400 m

MIMO

Y

Power

Power consumption (typical)

4.4 W

Power consumption (standby)

1 W

AC input voltage

196 - 250 V

AC input frequency

50 Hz

Power over Ethernet (PoE)

N

Design

Antenna type

Internal

LED indicators

Y

Product colour

White

System requirements

Windows operating systems supported

Y

Linux operating systems supported

Y

Mac compatibility

Y

Mac operating systems supported

Y

Mobile operating systems supported

Android, iOS

Operational conditions

Operating temperature (T-T)

0 - 40 C

Storage temperature (T-T)

-25 - 70 C

Operating relative humidity (H-H)

10 - 90%

Weight & dimensions

Width

68 mm

Depth

41 mm

Height

68 mm

Package width

190 mm

Package depth

231 mm

Package height

92 mm

Package weight

670 g

Technical details

Sustainability compliance

Y

Sustainability certificates

CE

Packaging content

Quick installation guide

Y

Cables included

LAN (RJ-45)

Logistics data

Harmonized System (HS) code

85171800
