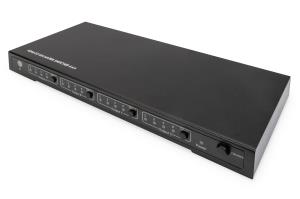

Matrix Switch 4x4 HDMI 2.0, 4K/60Hz 8x HDMI, 1x RS232, 1x RJ45, WebUI

Matrix Switch 4x4 HDMI 2.0, 4K/60Hz 8x HDMI, 1x RS232, 1x RJ45, WebUI

$315,74
Part Number: DS-43306


To order contact us;

Computer Sources,Inc.
21B Millar Court
Paramus
NJ 07652
USA
Mail: mail1235@optonline.net

Minimum order amount $2500.00

Product Details

Introduction

Send up to four different HDMI signals independently to up to four HDMI displays with UHD resolutions of up to 4K / 60 Hz.

- Supports UHD resolutions up to 4K / 60 Hz
- Every HDMI input can be assigned to every HDMI output
- Output of up to four HDMI signals to four HDMI monitors simultaneously or independently
- The HDMI inputs can be assigned to outputs as desired - even in parallel
- Switch all HDMI connections easily with a remote control, RS232, web interface or the device itself
- Configuration is also possible via a web interface and RS232
- Supports HDCP 2.2
- Supports storing and retrieving up to four routing presets
- HDMI bandwidth of 18 Gbps (600 MHz)

With the 4x4 HDMI matrix switch, you can choose between four HDMI signal sources and send them to four different HDMI outputs, independently or simultaneously. All HDMI ports can be assigned to other HDMI outputs, or to all of them, at your convenience. Easy to control with a remote control, the device, RS232 or a web interface. There are further configurations available via the web interface. For example, connect your Blu-Ray player, satellite receiver or gaming console at the same time and select the devices you would like to display using the remote control.

Features

Product type

AV matrix switcher

Maximum pixel clock

600 MHz

Maximum resolution

3840 x 2160 pixels

Bandwidth

18 Gbit/s

HDCP

Y

HDCP version

2.2

3D

Y

Design

Housing colour

Black

LED indicators

Y

Display

Built-in display

N

Ports & interfaces

HDMI input ports quantity

4

HDMI output ports quantity

4

HDMI version

2.0

RJ-45 input ports

1

RS-232 ports

1

Power

Output current

2000 mA

Output voltage

12 V

Operational conditions

Operating temperature (T-T)

0 - 50 C

Operating relative humidity (H-H)

0 - 95%

Logistics data

UK Trade Tariff code

85176200

Country of origin

China

Technical details

Package volume

3049.5 cm

Weight & dimensions

Width

122 mm

Depth

270 mm

Height

25 mm

Weight

787.5 g

Package width

285 mm

Package depth

214 mm

Package weight

1.05 kg

Packaging content

Cables included

AC

Manual

Y

AC adapter included

Y
