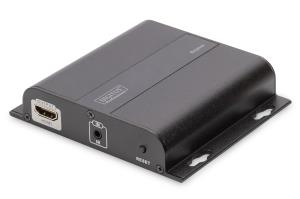

HDMI Extender 4K over IP, Receiver Unit over network cable (CAT 5/5e/6/7), 4K2K/30Hz, black

HDMI Extender 4K over IP, Receiver Unit over network cable (CAT 5/5e/6/7), 4K2K/30Hz, black

$82,82
Part Number: DS-55123


To order contact us;

Computer Sources,Inc.
21B Millar Court
Paramus
NJ 07652
USA
Mail: mail1235@optonline.net

Minimum order amount $2500.00

Product Details

Introduction

Expand the 4K HDMI Extender via CAT / IP Set (DS-55122) with additional receiver units (DS-55123) and distribute your HDMI signals to up to 253 screens (IP connection)

- Use additional receiver units (DS-55123) and your existing network infrastructure to display your video content on up to 253 screens (IP connection)
- Extends 4K video content to up to 120 m with a CAT 6 cable (point-to-point connection)
- Signal extension (unlimited distance) via the existing local network infrastructure (IP connection)
- Supports 4K (30Hz), 3840x2160p resolution
- Supports CAT 5, CAT 5e, CAT 6 and CAT 7 network cables
- HDMI bandwidth: 10.2 Gbit/s (max.)
- Supports HDCP 1.4

Extend the 4K HDMI Extender via CAT / IP Set with additional receiver units (DS-55123). The Extender Set (DS-55122) is a high-performance video distribution system consisting of a transceiver unit. It extends 4K HDMI signals to up to 120 m via a CAT6 network cable (point-to-point connection). In addition, you can use a network switch and the individual receiver units (DS-55123) to distribute your video content to up to 253 displays via the already existing network (IP connection). The additional integrated unidirectional IR interface allows a remote control of the input source.

Features

Type

AV receiver

Maximum resolution

3840 x 2160 pixels

Cable types supported

Cat5,Cat5e,Cat6

Maximum transfer distance

120 m

Supported video modes

480i,480p,576i,576p,720p,1080i,1080p,2160p

Bandwidth

10.2 Gbit/s

HDCP

Y

Material

Metal

Colour depth

24 bit

3D

Y

Product colour

Black

Ports & interfaces

Connectivity technology

Wired

RJ-45 input ports

1

Number of HDMI outputs

1

HDMI version

1.4

Remote (IR) input

1

DC-in jack

Y

Power

Output current

2 A

Operating voltage (receiver)

5 V

Power consumption (typical)

4 W

External power adapter

Y

Power over Ethernet (PoE)

N

Operational conditions

Operating temperature (T-T)

0 - 60 C

Weight & dimensions

Width

107.3 mm

Depth

94 mm

Height

23.7 mm

Weight

167 g

Packaging data

Package width

117 mm

Package depth

150 mm

Package height

77 mm

Package weight

366.667 g

Packaging content

AC adapter included

Y

Manual

Y

IR receiver included

Y

Technical details

Country of origin

China

Package volume

1351.35 cm

Logistics data

UK Trade Tariff code

85176200
