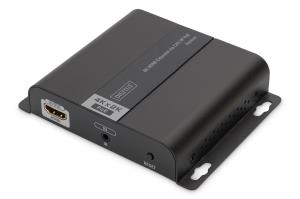

4K HDMI Extender, Receiver Unit over IP/CAT 5, 6 (120m), POE powered

4K HDMI Extender, Receiver Unit over IP/CAT 5, 6 (120m), POE powered

$131,10
Part Number: DS-55125


To order contact us;

Computer Sources,Inc.
21B Millar Court
Paramus
NJ 07652
USA
Mail: mail1235@optonline.net

Minimum order amount $2500.00

Product Details

Introduction

Extend the 4K HDMI Extender Set (DS-55124) with additional receiver units (DS-55125) and send your HDMI signals to up to 253 screens (point-to-multipoint connection)

- Use additional receiver units (DS-55125) and your existing network infrastructure or additional PoE switches to display video contents on up to 253 screens (point-to-multipoint connection)
- Power supply through PoE switch - no external power supply required
- Supports CAT 5, CAT 5e, CAT 6 and CAT 7 network cables
- Supports 4K (30 Hz), 3840 x 2160p resolution
- HDMI bandwidth: 10.2 Gbit/s (max.)
- HDCP version: 1.4

The 4K HDMI extender set (DS-55124) contains a transmitter unit and a receiver unit. The units do not require external power supply, they are powered by an additional PoE switch. Additional PoE switches or the existing infrastructure allows the HDMI signal to be extended over an unlimited distance (IP connection). Additional receiver units (DS-55125) allow video contents to be displayed on up to 253 screens. Use your existing network infrastructure or additional PoE switches (point-to-multipoint connection) for this purpose. 4K video contents can be displayed at a distance of up to 120 meters with a single point-to-point connection (power supply required). Put displays and TVs wherever you like, no matter where the output source is.

Features

Type

AV receiver

Maximum resolution

3840 x 2160 pixels

Cable types supported

Cat5,Cat5e,Cat6

Maximum transfer distance

120 m

Supported video modes

480i,480p,576i,576p,720p,1080i,1080p,2160p

Bandwidth

10.2 Gbit/s

Audio formats supported

LPCM

Material

Metal

Colour depth

24 bit

Wall mountable

Y

HDCP version

1.4

Product colour

Black

Ports & interfaces

Connectivity technology

Wired

RJ-45 input ports

1

Number of HDMI outputs

1

HDMI version

1.4

Remote (IR) input

1

Power

Operating voltage

5 V

Power over Ethernet (PoE)

Y

Operational conditions

Operating temperature (T-T)

0 - 60 C

Weight & dimensions

Width

94 mm

Depth

119 mm

Height

24 mm

Weight

280 g

Packaging data

Package width

149 mm

Package depth

200 mm

Package height

80 mm

Package weight

410 g

Packaging content

Manual

Y

IR receiver included

Y

Technical details

Country of origin

China

Package volume

2384 cm

Logistics data

UK Trade Tariff code

85176200

Master (outer) case width

270 mm

Master (outer) case length

380 mm

Master (outer) case height

420 mm

Master (outer) case gross weight

8.5 kg

Master (outer) case volume

43092 cm

Products per master (outer) case

20 pc(s)
