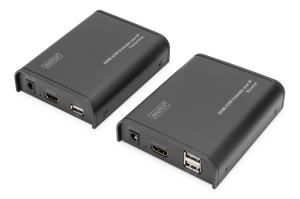

HDMI KVM Extender, 120 m over network cable (Cat 5, 5E, 6), Full HD, 1080p

HDMI KVM Extender, 120 m over network cable (Cat 5, 5E, 6), Full HD, 1080p

$163,72
Part Number: DS-55202


To order contact us;

Computer Sources,Inc.
21B Millar Court
Paramus
NJ 07652
USA
Mail: mail1235@optonline.net

Minimum order amount $2500.00

Product Details

Introduction

Extends the HDMI signal to up to 120 m and offers the possibility of controlling the keyboard and mouse via USB on the receiver unit

- Extends the maximum length for HDMI cable to up to 120 m via a simple network cable
- Extension of the signal (unlimited distance) over the existing local network infrastructure (over IP connection)
- Highest supported video resolution: 1080p / 60 Hz
- Supports KVM function - convenient control of mouse and keyboard via USB on the receiver unit
- Supports LAN-standard 802.3 Ethernet 10/100/100 Mbps
- LED activity indicator for function, keyboard and mouse

The Digitus HDMI KVM extender set consists of a sender unit (local location) as well as a receiver unit (remote location). The HDMI signal can be extended by means of a network cable (CAT 6, 5e, 5) up to a maximum distance of 120m. The HDMI signal can also be extended to an unlimited distance via the existing network infrastructure (via IP connection). The highest supported video resolution is 1080p / 60 Hz. It also makes convenient access on a computer (mouse and keyboard) possible via the USB ports on the receiver unit. It is perfectly suited to industrial, commercial and public applications.

Features

Type

Transmitter & receiver

Connectivity technology

Wired

Maximum transfer distance

120 m

Cable types supported

Cat5,Cat5e,Cat6

Maximum digital resolution

1920 x 1080 pixels

Product colour

Black

Material

Aluminium

Country of origin

China

Plug and Play

Y

LED indicators

Y

Transmitter

Transmitter video port type

HDMI

Transmitter local keyboard/mouse port type

USB

RJ-45 ports quantity (transmitter)

1

Receiver

Receiver local video port type

HDMI

Receiver local keyboard/mouse port type

USB

RJ-45 ports quantity (receiver)

1

Power

AC adapter output voltage

5 V

AC adapter output current

1 A

Power consumption (transmitter) (max)

3.5 W

Power consumption (receiver) (max)

3.5 W

Operational conditions

Operating temperature (T-T)

0 - 60 C

Storage temperature (T-T)

-20 - 70 C

Weight & dimensions

Transmitter weight

160 g

Receiver weight

170 g

Packaging data

Package width

176 mm

Package depth

240 mm

Package weight

740 g

Technical details

Dimensions (WxDxH)

89.5 x 109.6 x 26.3 mm

Maximum resolution

1920 x 1080 pixels

Package volume

3379.2 cm

Packaging content

AC adapter included

Y

Manual

Y

Logistics data

UK Trade Tariff code

85176200
