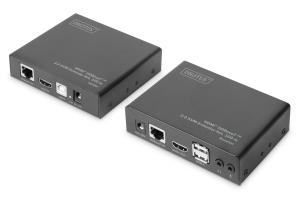

HDBaseT 2.0 HDMI KVM Extender Set 4K/60Hz (4:2:0), 6x USB

HDBaseT 2.0 HDMI KVM Extender Set 4K/60Hz (4:2:0), 6x USB

Part Number: DS-55505

To order contact us;

Computer Sources,Inc.
21B Millar Court
NJ 07652

Minimum order amount $2500.00

Product Details


Use an RJ45 network cable to transmit high-resolution, uncompressed audio/video content, USB signals and data

- Transmit high-resolution multimedia content without a loss of quality and uncompressed over distances of up to 100 m
- Saves unnecessary cable relocation and pools multimedia signals along with many other signals in a single network cable
- Forwarding without loss of quality through transmission of uncompressed data
- Supports HDBaseT™ 2.0 via CAT5e/6/7/8 cable up to 100 m
- Supports transmission of video, audio and USB signals via network cable
- Supports Full 3D, 1080p, 4K@60Hz (YUV 4:2:0)
- Supports USB 2.0 features (HighSpeed) for up to 6 USB devices
- Supports CEC (Consumer Electronics Control)
- Supports uncompressed audio transmission (LPCM7.1)
- Supports compressed audio transmission (DTS, Dolby Digital incl. DTS-HD Master Audio™ and Dolby TrueHD)

With the DIGITUS® HDMI® HDBaseT™ 2.0 KVM Extender Set, you can control your source device at a distance of up to 100 meters using a single CAT5e/6/7/8 cable connection with uncompressed 4K-HDMI™ video content and access to up to 6 connected USB devices. This extender was specially developed for smooth and easy setup. HDBaseT™ 2.0 enables installation using a single cable, avoiding the laborious relocation of multiple cables. A typical application would be a multi-room solution in which the source device and display can be at a distance of up to 100 m. From the receiver, you can use up to 6 USB devices that are connected to the transmitter module, and of course you can enjoy video and audio content. A very easy KVM functionality when it comes to installation and application. Instead of relocating multiple cables, use a single RJ45 network cable or the existing network connections (point-to-point) with the HDMI® HDBaseT™ 2.0 Extender from DIGITUS®.



Transmitter & receiver

Connectivity technology


Maximum transfer distance

100 m

Cable types supported


Maximum digital resolution

4096 x 2160 pixels

Colour depth

36 bit

Product colour




Country of origin


USB 2.0 ports quantity



Transmitter video port type


Transmitter local keyboard/mouse port type


RJ-45 ports quantity (transmitter)



Receiver local video port type


Receiver local keyboard/mouse port type


RJ-45 ports quantity (receiver)



AC input voltage

100 - 240 V

Input current

0.65 A

AC adapter output voltage

12 V

AC adapter output current

2 A

Power consumption (transmitter) (max)

3 W

Power consumption (receiver) (max)

7 W

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

5 - 90%

Weight & dimensions

Transmitter width

13 cm

Transmitter depth

1 cm

Transmitter height

2.5 cm

Transmitter weight

212 g

Receiver width

11 cm

Receiver depth

8 cm

Receiver height

2.8 cm

Receiver weight

240 g

Packaging data

Package width

196 mm

Package depth

243 mm

Package weight

975 g

Technical details

Maximum resolution

3840 x 2160 pixels

Package volume

2857.68 cm³

Packaging content

Cables included


Mounting bracket(s) included


Logistics data

UK Trade Tariff code
