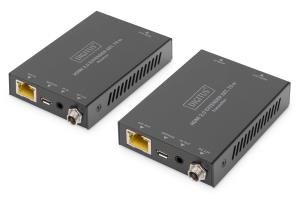

HDMI 2.0 Extender Set 70m 4K/60Hz 18 Gbps HDCP 2.2 HDR PoC

HDMI 2.0 Extender Set 70m 4K/60Hz 18 Gbps HDCP 2.2 HDR PoC

$92,42
Part Number: DS-55506


To order contact us;

Computer Sources,Inc.
21B Millar Court
Paramus
NJ 07652
USA
Mail: mail1235@optonline.net

Minimum order amount $2500.00

Product Details

Introduction

Enables HDMI signal transmission at up to 70 m with UHD resolution (4K2K/60 Hz, 4:4:4) via a CAT cable

- HDMI 2.0
- 18 Gbps video bandwidth
- Supports 4K2K/60 Hz, 4:4:4
- HDCP 2.2 / 1.4
- Maximum transmission distance: 70 m
- PoC (Power over Cable) - Only the unit requires an external power adapter
- Automatic EDID detection
- HDR support
- HDMI loop-out / output Connection of local monitor to the source device
- Supports Cat5e, CAT 6, CAT 6A, CAT 7, CAT 8 network cable

The DIGITUS HDMI Extender Set enables HDMI signal transmission over a distance of up to 70 m (4K/30Hz). The extender set supports UHD resolution (4K2K/60 Hz, 4:4:4, 18 Gbps) over a CAT 6/7/8 cable (60m distance). Thanks to PoC, only one unit needs to be supplied with power by an external power adapter. HDR, HDCP support as well as automatic EDID detection are also included as features. Using the HDMI loop-out to the transmitter unit, a local monitor can be connected in order to monitor the output to the receiver.

Features

Type

AV transmitter & receiver

Maximum resolution

3840 x 2160 pixels

Cable types supported

Cat6, Cat6a, Cat7, Cat8

Maximum transfer distance

70 m

EDID management

Y

Bandwidth

18 Gbit/s

HDCP

Y

Material

Metal

Wall mountable

Y

Plug and Play

Y

HDCP version

2.2

Product colour

Black

Ports & interfaces

Connectivity technology

Wired

RJ-45 input ports

1

RJ-45 output ports

1

HDMI in

1

Number of HDMI outputs

2

HDMI version

2.0

USB ports quantity

2

USB version

2.0

USB connector type

Micro-USB

Remote (IR) input

1

Remote (IR) output

1

Power

Operating voltage

12 V

Input current

1 A

Power consumption (typical)

3.84 W

Power over Ethernet (PoE)

N

Operational conditions

Operating temperature (T-T)

0 - 40 C

Weight & dimensions

Width

61 mm

Depth

88 mm

Height

18 mm

Weight

160 g

Packaging data

Quantity per pack

1 pc(s)

Package width

200 mm

Package depth

113 mm

Package height

75 mm

Package weight

620 g

Package type

Box

Packaging content

AC adapter included

Y

Manual

Y

Mounting brackets included

Y

Mounting kit

Y

Technical details

Country of origin

China

Package volume

1695 cm

Logistics data

UK Trade Tariff code

85176200
