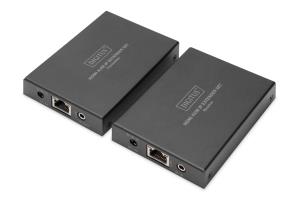

HDMI KVM Extender Set over IP 150m Full HD 1080p

HDMI KVM Extender Set over IP 150m Full HD 1080p

$134,80
Part Number: DS-55507


To order contact us;

Computer Sources,Inc.
21B Millar Court
Paramus
NJ 07652
USA
Mail: mail1235@optonline.net

Minimum order amount $2500.00

Product Details

Introduction

Extends the HDMI signal to up to 150 m and offers KVM functionality to control the signal source via keyboard and mouse on the receiver unit

- Extends the maximum length for HDMI cables to up to 150 m via a simple network cable
- Extension of the signal (unlimited distance) via the existing local network infrastructure or commercial network switches (IP connection)
- Supports video resolutions up to: Full HD (1920x1200/60 Hz, 4:4:4)
- KVM functionality for connection to mouse and keyboard
- Supports Cat5e, CAT 6, CAT 6A, CAT 7, CAT 8 network cable
- IR transmission
- Compact design for easy and flexible installation
- Sturdy metal housing

The HDMI KVM IP Extender Set comprises a transmitter unit (positioned locally) as well as a receiver unit (positioned at a distance). The HDMI signal can be extended using a network cable (Cat5e, CAT 6, CAT 6A, CAT 7) up to a maximum distance of 150 m (point-to-point connection). The HDMI signal can also be extended to an unlimited distance using the existing network infrastructure or using standard IP network switches (IP connection). The highest supported video resolution is Full HD (1920x1200/60 Hz, 4:4:4). The set also enables convenient access to a computer (mouse and keyboard) using the USB ports on the receiver unit. The set is perfectly suited for industrial, commercial and public sector applications.

Features

Type

AV transmitter & receiver

Maximum resolution

1920 x 1200 pixels

Maximum transfer distance

150 m

Electrostatic Discharge (ESD) protection

Y

Bandwidth

6.75 Gbit/s

Video compression formats

H.265

Material

Metal

Plug and Play

Y

HDCP version

1.4

Ports & interfaces

Connectivity technology

Wired

RJ-45 input ports

1

RJ-45 output ports

1

HDMI in

1

Number of HDMI outputs

1

HDMI version

1.4

USB ports quantity

3

USB version

1.1

USB connector type

USB Type-A, USB Type-B

Remote (IR) input

1

Remote (IR) output

1

Power

Operating voltage

12 V

Input current

1 A

Power consumption (transmitter) (max)

1.4 W

Power consumption (receiver) (max)

1.7 W

Power over Ethernet (PoE)

N

Operational conditions

Operating temperature (T-T)

-10 - 50 C

Weight & dimensions

Receiver dimensions (WxDxH)

67 x 91.5 x 17.5 mm

Receiver weight

150 g

Transmitter dimensions (WxDxH)

67 x 91.5 x 17.5 mm

Transmitter weight

155 g

Packaging data

Quantity per pack

1 pc(s)

Package width

185 mm

Package depth

135 mm

Package height

75 mm

Package weight

605 g

Package type

Box

Packaging content

AC adapter included

Y

Cables included

USB

Manual

Y

Technical details

Country of origin

China

Package volume

1873.12 cm

Logistics data

UK Trade Tariff code

85176200
