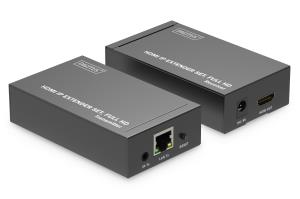

HDMI IP Video Extender Set. 120m Full HD. 1080p

Introduction

Use additional receiver units (DS-55518) and your existing network infrastructure/network switches to display video content on up to 253 screens (IP connection)

- Extends Full HD AV signals with a CAT6 cable over an unlimited distance via the existing local network infrastructure or commercial network switches
- Extends Full HD AV signals with a CAT6 cable up to 120 m (point-to-point connection)
- Supports resolutions of up to 1080p/60Hz, Full HD
- Supports CAT 5e, 6, 6A,7, 8 network cables
- IR interface enables remote control of the input source from the output screen
- HDCP 1.3
- Video bandwidth: 1.65 Gbps per channel

The HDMI Extender Set is a powerful video distribution system that consists of one transmitter/receiver unit. It extends Full HD AV signals using a CAT6 network cable (point-to-point connection) up to 120 m. In addition, using network switches and the individual receiver units (DS-55518), you can distribute your video content over up to 253 displays via the already existing network (IP connection) and extend them over an unlimited distance. The additional integrated unidirectional IR interface enables remote control of the input source from the output screen (receiver side).

Features

Type

AV transmitter & receiver

Maximum resolution

1920 x 1080 pixels

Cable types supported

Cat6, Cat6a, Cat7, Cat8

Maximum transfer distance

120 m

Maximum refresh rate

60 Hz

LED indicators

Y

Supported video modes

1080p

Bandwidth

1.65 Gbit/s

Cable length

1.5 m

HDCP

Y

Material

Metal

Wall mountable

Y

HDCP version

1.3

Product colour

Black

Ports & interfaces

Connectivity technology

Wired

Ethernet LAN

Y

RJ-45 input ports

1

RJ-45 output ports

1

Number of HDMI outputs

1

Remote (IR) input

1

Remote (IR) output

1

DC-in jack

Y

Power

Operating voltage

5 V

Input current

2 A

Power consumption (typical)

8 W

Power over Ethernet (PoE)

N

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Weight & dimensions

Width

59 mm

Depth

100 mm

Height

25 mm

Weight

165 g

Packaging data

Package width

196 mm

Package depth

243 mm

Package height

60 mm

Package weight

770 g

Packaging content

AC adapter included

Y

Cables included

IR

Manual

Y

Transceiver(s) included

Y

Mounting kit

Y

Technical details

Country of origin

China

Package volume

2857.68 cm³

Logistics data

UK Trade Tariff code

85176200
