Product Details

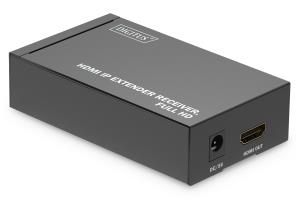

Introduction
Use additional receiver units and your existing network infrastructure/network switches to display video content on up to 253 screens (IP connection)
- Extends Full HD AV signals with a CAT6 cable over an unlimited distance via the existing local network infrastructure or commercial network switches
- Supports resolutions of up to 1080p/60Hz, Full HD
- Supports CAT 5e, 6, 6A,7, 8 network cables
- IR interface enables remote control of the input source from the output screen
- HDCP 1.3
- Video bandwidth: 1.65 Gbps
Expand the HDMI IP Extender Set (DS-55517) with additional receiver units to reproduce your AV content on multiple monitors at the same time. The set extends Full HD AV signals using a CAT6 network cable (point-to-point connection) up to 120 m. In addition, using network switches and the individual receiver units (DS-55518), you can distribute your video content over up to 253 displays via the already existing network (IP connection) and extend them over an unlimited distance.
Features
Type
AV receiver
Maximum resolution
1920 x 1080 pixels
Cable types supported
Cat6, Cat6a, Cat7, Cat8
Maximum transfer distance
120 m
Maximum refresh rate
60 Hz
LED indicators
Y
Supported video modes
1080p
Bandwidth
1.65 Gbit/s
Cable length
1.5 m
HDCP
Y
Material
Metal
Wall mountable
Y
HDCP version
1.3
Product colour
Black
Ports & interfaces
Connectivity technology
Wired
RJ-45 input ports
1
Number of HDMI outputs
1
Remote (IR) input
1
DC-in jack
Y
Power
Operating voltage
5 V
Input current
2 A
Power consumption (typical)
8 W
Power over Ethernet (PoE)
N
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Weight & dimensions
Width
59 mm
Depth
100 mm
Height
25 mm
Weight
165 g
Packaging data
Package width
145 mm
Package depth
190 mm
Package height
60 mm
Package weight
425 g
Packaging content
AC adapter included
Y
Cables included
IR
Manual
Y
Mounting kit
Y
Technical details
Country of origin
China
Package volume
1653 cm³
Logistics data
UK Trade Tariff code
85176200
