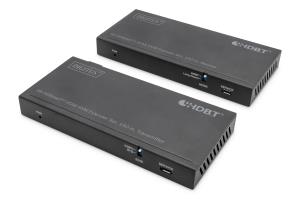

HDBaseT KVM Extender Set. 150m 4K/60Hz. USB 2.0. PoC. IR. black

Introduction

The HDBaseT™ HDMI Extender Set enables uncompressed, high-resolution AV signal transmission over large distances and offers KVM functionality (connection of mouse and keyboard)

- Supports HDBaseT™ 1.0 via CAT6A/7/8 cable up to 100 m
- Transmission distance - Full HD (1080p/60Hz): 150 m (max.)
- Transmission distance - UHD (4K/60Hz): 120 m (max.)
- Supports 4K2K/60Hz (4:4:4)
- Video bandwidth: 18 Gbps
- 2x USB 2.0 ports on receiver for connection of webcam, data carrier, touch panel, mouse and keyboard, for example.
- Touch display support / Touch panel back control
- PoC (Power over Cable) - Only the unit requires an external power adapter
- EDID support (2 modes) - 1: Copy - HDMI output receiver / 2: Standard - 1080p, 2 channel
- Bi-directional IR signal transmission

The HDBaseT™ HDMI KVM Extender Set enables uncompressed, high-resolution AV signal transmission over large distances using a CAT6 (or higher) network cable. The maximum transmission distance is 150 m. Thanks to PoC, only one unit needs to be supplied with power by an external power adapter. The receiver unit features two USB 2.0 ports for connection of webcam, data carrier, mouse and keyboard, for example. The set also supports touch displays. Thanks to the touch panel back control, the signal source can also be controlled using finger gestures. Bi-directional IR transmission is also included as a feature.

Features

Type

Transmitter & receiver

Connectivity technology

Wired

Maximum transfer distance

150 m

Cable types supported

Cat6a, Cat7, Cat8

Maximum refresh rate

60 Hz

Product colour

Black

Material

Metal

Country of origin

China

Easy to install

Y

USB 2.0 ports quantity

5

USB data transfer rates

480 Mbit/s

Transmitter

Transmitter video port type

HDMI

Number of displays supported

1

Transmitter local keyboard/mouse port type

USB

RJ-45 ports quantity (transmitter)

1

Receiver

Receiver local video port type

HDMI

Receiver local keyboard/mouse port type

USB

RJ-45 ports quantity (receiver)

1

Power

AC adapter output voltage

24 V

AC adapter output current

1 A

Power consumption (transmitter) (max)

13.2 W

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Weight & dimensions

Transmitter width

14 cm

Transmitter depth

6.5 cm

Transmitter height

1.8 cm

Transmitter weight

245 g

Receiver width

14 cm

Receiver depth

6.5 cm

Receiver height

1.8 cm

Receiver weight

249 g

Packaging data

Package width

245 mm

Package depth

185 mm

Package height

75 mm

Package weight

1.09 kg

Technical details

Package volume

3399.38 cm³

Packaging content

AC adapter included

Y

Cables included

IR, USB

Manual

Y

Mounting bracket(s) included

Y

Ports & interfaces

USB port type

USB Type-A

HDMI version

2.0b

RJ-45 ports quantity

2

Logistics data

UK Trade Tariff code

85176200
