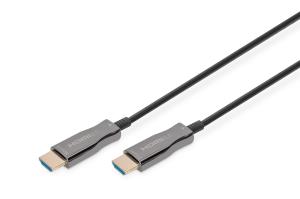

HDMI AOC hybrid-fiber connection cable, Type A M/M, 30m UHD 4K@60Hz, CE, black

Introduction

Transfer of uncompressed video and audio signals over a distance of up to 30 m in UHD 4K resolution with 18 Gbps bandwidth.

- Active fiber optic data transfer of up to 18Gbps
- Resolution up to 4K@60Hz
- Transfers uncompressed HDMI® video and audio signals over a distance of 30 m
- Flexible installation with a tight bending radius
- Compact cable with small diameter
- Immune to electromagnetic interference (EMI)
- Supports HDR (High Dynamic Range)
- Meets HDMI® 2.0b standard requirements (backwards-compatible)
- Hybrid construction: fiber optic and copper cores
- Simple Plug and Play installation

This active HDMI® AOC hybrid fiber optic cable is ideally suited for transferring uncompressed video and audio data with high bandwidth over longer distances. The hybrid construction, which uses copper and fiber optic cable, prevents electromagnetic interference. This ensures a loss-free transfer along the entire length of the cable with UHD resolution of up to 4K/60Hz and bandwidths of up to 18 Gbps. The use of fiber optic cable keeps the diameter of this active cable very low and gives it a very tight bending radius and low weight. It is ideal for use in homes, meeting rooms, and conference rooms as well as within buildings — and these are just a few of the possible uses. The simple Plug and Play installation is user-friendly; just plug it in and immediately enjoy optimal image quality. It supports numerous standards such as HDMI 2.0b, HDCP 2.2, and HDR. As far as audio goes, features such as ARC, DTS-HD Master Audio, Dolby TrueHD and many more are supported. Cutting edge chip technology makes it possible to transfer the full HDMI® signal spectrum while also supporting uncompressed CED and EDID with very low latency.

Features

Cable length

30 m

Connector 1

HDMI Type A (Standard)

Connector 2

HDMI Type A (Standard)

Connector 1 gender

Male

Connector 2 gender

Male

Connector 1 form factor

Straight

Connector 2 form factor

Straight

Product colour

Black

HDMI version

2.0b

3D

Y

Supported graphics resolutions

4096 x 2560

Supported video modes

1080p,2160p

Dolby technologies

Dolby TrueHD

Audio Return Channel (ARC)

Y

HDMI Ethernet channel

Y

HDCP

Y

Data transfer rate

18 Gbit/s

Maximum resolution

4096 x 2560 pixels

Maximum refresh rate

120 Hz

Connector contacts plating

Gold

Plug and Play

Y

Quantity per pack

1 pc(s)

Weight & dimensions

Package volume

1920 cm³

Package width

160 mm

Package depth

160 mm

Package weight

1 kg

Other features

Country of origin

China

Logistics data

UK Trade Tariff code

85447000
