Product Details
Introduction

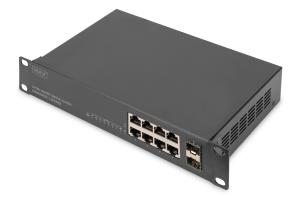

Gigabit switch for use in 10-inch chassis with 2 SFP uplinks - Simple and economical solution for expanding your network
- 8 x RJ45 ports 10/100/1000 Mbps
- 2 x SFP uplink ports 1000 Mbps
- Network standards: IEEE802.3, IEEE802.3u, IEEE802.3ab
- Full-duplex flow control IEEE802.3x
- High backplane bandwidth of 20 Gbps
- Integrated power supply with fanless design
- Rugged 10" metal chassis
The 8-Port Gigabit Switch from DIGITUS® provides 8 x Gigabit RJ45 ports, additionally it offers 2 SFP uplink ports with 1 Gigabit bandwidth. Easily expand the existing network, providing a backplane bandwidth of 20 Gbps. The switch can be installed in 10-inch server racks and enclosures. The power supply is already integrated into the rugged, fanless chassis. Ideal for expanding / building small home or business networks.
Management features
Switch type
Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
8
Installed SFP modules quantity
1
SFP module slots quantity
2
Uplink ports quantity
2
Power connector
AC-in jack
Network
Networking standards
IEEE 802.3x
10G support
N
Full duplex
Y
Flow control support
Y
Auto MDI/MDI-X
Y
Ethernet LAN data rates
10,100,1000 Mbit/s
VLAN support
N
Data transmission
Switching capacity
20 Gbit/s
Forwarding rate
1.488 Mpps
MAC address table
8000 entries
Design
Rack mounting
Y
Stackable
N
Product colour
Black
Housing material
Metal
LED indicators
Y
Vandal-proof
N
Suitable for outdoor use
N
Country of origin
China
Performance
Fanless
Y
Power
Power source
AC
Power supply included
Y
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (max)
15 W
Power plug type
Type F (CEE 7/4)
Power over Ethernet (PoE)
Power over Ethernet (PoE)
N
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 70 °C
Operating relative humidity (H-H)
20 - 85%
Storage relative humidity (H-H)
20 - 85%
Weight & dimensions
Width
252 mm
Depth
150 mm
Height
44 mm
Weight
1.1 kg
Packaging data
Quick start guide
Y
Package width
240 mm
Package depth
67 mm
Package height
320 mm
Package volume
5145.6 cm³
Package weight
1.38 kg
Logistics data
UK Trade Tariff code
85176200
