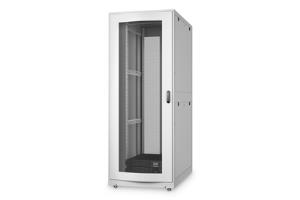

EDGE-System A6-3 42U 6KW UPS PDU

Introduction

The DIGITUS® Edge System A6-3 is a full-fledged micro data center. It is suitable for installation in clean and well-ventilated rooms in the IT server environment

- The Edge System A6-3 is designed for a maximum installed ICT load of 6 kW
- The 42 rack unit server cabinet comes in protection class IP20, dimensions: 600 x 1000 x 2050 mm (WxDxH)
- 37 rack units are available for the installation of additional devices
- A double converter UPS system with a nominal capacity of 6 kVA safeguards the system against 10 common network errors
- One PDU with 16 x C13 and 4 x C19 outputs offer sufficient resources for a variety of applications: all of them can be measured separately, including differential current measurement.
- The thermal load is emitted into the room through perforated doors

In the Edge System A6-3, the following components are combined to form a homogeneous micro data center. Server cabinet: The standardized 19” server cabinet with a gross height of 42 rack units allows for variable installation of all standardized ICT components and comes in protection class IP20. Access to the inside of the cabinet is secured using a mechanical locking system. Optional accessories such as cable management ensure tidy and clean cable routing inside the cabinet. Main power distributor: The devices installed in the cabinet are supplied with power via a single-phase 32A cable. UPS: The Edge System A6-3 protects the installed devices against numerous network disruptions thanks to a top-class 6kVA UPS (VFI, Voltage and Frequency Independent). The installed batteries offer protection for roughly 5 minutes, this protection can be extended through optional battery expansions. Cabinet power distribution: One PDU with 16 x C13 and 4 x C19 outputs offer sufficient resources for a variety of applications: all of them can be measured separately, including differential current measurement. Cooling: The thermal load is emitted into the room through perforated doors. A wide range of accessories are available to choose from for the DIGITUS® Edge Solution as optional extensions. Integration: Depending on the customer’s requirements, the DIGITUS® Edge System A6-3 is available for delivery as a “bundle” (components packaged separately), partially installed or as a fully installed, configured and tested system.

Features

Rack capacity

42U

Type

Freestanding rack

Maximum weight capacity

1000 kg

Product colour

Grey

Frame type

Closed

Back door construction

Steel/Perforated

Front door construction

Steel

Side panels included

Y

Rack rails

Y

Cooling type

Passive

PDU types

Metered

Additional PDU

Y

Outlets quantity (Additional PDU)

3

Monitoring

N

International Protection (IP) code

IP20

Built-in UPS

Y

Weight & dimensions

Size (imperial)

48.3 cm (19")

Width

600 mm

Depth

1000 mm

Mounting depth (max)

100 cm

Packaging data

Temperature sensor

N

Batteries included

Y

Package width

1050 mm

Package depth

650 mm

Package height

1050 mm

Package volume

1399120 cm³

Package weight

206 kg

Logistics data

UK Trade Tariff code

94032080

Country of origin

China

Other features

Cable type

IEC60309 16A plug

Power supply type

6.000VA/6kW
