1G PoE+ Injector 802.3at 30W

Introduction

Ideal PoE+ injector for industrial applications with high temperature ranges, DIN rail installation and power supply via terminals

- Corresponds to the 802.3at PoE+ and 802.3af PoE standard
- Up to 30-watt output possible
- Suitable for high temperature ranges from -40 °C to +75 °C
- Can be snapped onto DIN rails
- Surge protection up to 6 kV (ESD)
- Minimize your cabling work – power and data transmission via a single cable
- Expand your network in places where no power cables or outlets are available
- The output has a current limit, short circuit safeguard and automatic end device detection
- Low costs – no separate power infrastructure required, existing network cabling can be used

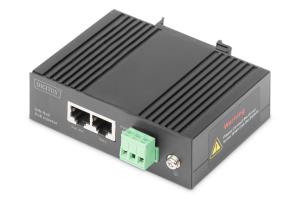

The DIGITUS® Gigabit Ethernet PoE+ Injector with a total output of 30 W is the ideal choice for industrial applications such as the connection of wireless access points, IP cameras or other PoE-compatible devices. Designed for a high temperature range, it can be used even in the most unfavorable conditions of heat or cold (-40 °C to +75 °C). It can be snapped onto the standard DIN rails and offers surge protection of up to 6 kV for connected PoE devices and 3 kA for the voltage input. The PoE+ injector spares the need to install a new power infrastructure, as data and power can be transmitted via a network cable. In this way, you can effortlessly extend existing networks by up to 100 m, even if no conventional AC or DC power supply is available there. Trust in the reliable and secure connection of industrial IT components – even via existing Ethernet infrastructures with Cat. 5 network cable standard or higher.

Network

Ethernet interface type

Gigabit Ethernet

Ethernet LAN data rates

10,100,1000 Mbit/s

Power over Ethernet (PoE)

Y

Networking standards

IEEE 802.3at

Features

Surge protection

Y

LED indicators

PoE, Power

Pin assignment & polarity

Pin 3/6 (+), Pin 1/2 (-)

Country of origin

China

Ports & interfaces

Ethernet LAN (RJ-45) ports

2

RJ-45 input ports

1

RJ-45 output ports

1

Power

Output power

30 W

Input voltage

45 - 56 V

AC adapter output voltage

42 - 54 V

Power consumption (max)

32 W

Total Power over Ethernet (PoE) budget

30 W

Operational conditions

Operating temperature (T-T)

-40 - 75 °C

Storage temperature (T-T)

-40 - 85 °C

Storage relative humidity (H-H)

5 - 95%

Weight & dimensions

Width

103 mm

Depth

78 mm

Height

32 mm

Weight

259 g

Packaging data

Package width

130 mm

Package depth

50 mm

Package weight

416.667 g

Package volume

1105 cm³

Logistics data

UK Trade Tariff code

85044082
