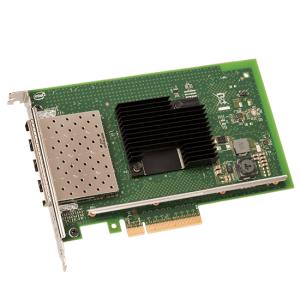

Ethernet Converged Network Adapter Pci-e Bulk (x710da4fhblk)

Introduction

Flexible Port Partitioning
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.

Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance

PCI-SIG* SR-IOV Capable
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.

Intel® Ethernet Power Management
Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed.

Ports & interfaces

Connectivity technology

Wired

Host interface

PCI Express

Interface

Fiber

Ethernet LAN (RJ-45) ports

4

Fiber ports quantity

4

Fiber optic connector

SFP+

PCI version

3.0

Network

Maximum data transfer rate

10000 Mbit/s

Ethernet LAN data rates

10,1000 Mbit/s

Fiber ethernet cabling technology

10GBASE-LR,10GBASE-SR

Quality of Service (QoS) support

Y

Maximum operating distance

10 m

LAN controller

Intel® X710

Design

Product colour

Black, Green, Stainless steel

Internal

Y

LED indicators

Y

Certification

FCC A, UL, CE, VCCI, BSMI, CTICK, KCC

System requirements

Compatible operating systems

https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html

Operational conditions

Operating temperature (T-T)

0 - 55 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

0 - 90%

Weight & dimensions

Width

167 mm

Depth

111 mm

Packaging data

Quantity

1

Other features

Data transfer rate

8 GT/s

Cable type

SFP+ Direct Attached Twin Axial Cabling up to 10m

Market segment

Server

Target market

Artificial Intelligence, High Performance Computing

Intel Virtual Machine Device Queues (VMDq)

Y

PCI-SIG* SR-IOV Capable

Y

On-chip QoS and Traffic Management

Y

Intel Flexible Port Partitioning

Y

Storage-over-ethernet

Y

Speed & slot width

8.0 GT/s, x8 Lane

Low halogen options available

N

Intelligent Offloads

Y

iWARP/RDMA

N

Fiber Channel over Ethernet

N

Intel Ethernet Power Management

Y

Intel Data Direct I/O Technology

Y

Intel Virtualization Technology for Connectivity (VT-c)

Y

Interface type

PCIe v3.0 (8.0 GT/s)

Storage Over Ethernet

iSCSI NFS

Conflict-Free

Y

Launch date

Q4'14

Network interface card cable medium

Copper

Network interface card type

Server

Product brief URL

https://www.intel.com/content/www/us/en/ethernet-products/converged-network-adapters/ethernet-x710-brief.html

Product type

Network Interface Card

Status

Launched

Last change

64826826

Processor family

700 Network Adapters (up to 40GbE)-700 Network Adapters (up to 40GbE)

Ethernet adapter ARK ID

83965

Harmonized System (HS) code

8517620090

Export Control Classification Number (ECCN)

5A991

Commodity Classification Automated Tracking System (CCATS)

NA

Controller type

Intel® Ethernet Controller X710

Cabling type

SFP+ Direct Attached Twin Axial Cabling up to 10m

Bracket height

Full-Height (FH)

Product family

Intel 10 Gigabit server adapter

Product series

700 Series Network Adapters (up to 40GbE)

Product codename

Fortville
