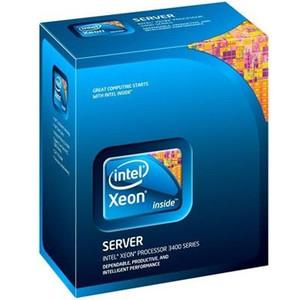

Xeon Processor L3406 2.26 GHz

Xeon Processor L3406 2.26 GHz

$243,46
Part Number: BX80616L3406


To order contact us;

Computer Sources,Inc.
21B Millar Court
Paramus
NJ 07652
USA
Mail: mail1235@optonline.net

Minimum order amount $2500.00

Product Details

Introduction

Intel® Turbo Boost Technology
Intel® Turbo Boost Technology dynamically increases the processor's frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don't.

Intel® Hyper-Threading Technology
Intel® Hyper-Threading Technology (Intel® HT Technology) delivers two processing threads per physical core. Highly threaded applications can get more work done in parallel, completing tasks sooner.

Intel® Virtualization Technology (VT-x)
Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple "virtual" platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.

Intel® Virtualization Technology for Directed I/O (VT-d)
Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.

Intel® Trusted Execution Technology
Intel® Trusted Execution Technology for safer computing is a versatile set of hardware extensions to Intel® processors and chipsets that enhance the digital office platform with security capabilities such as measured launch and protected execution. It enables an environment where applications can run within their own space, protected from all other software on the system.

Intel® 64
Intel® 64 architecture delivers 64-bit computing on server, workstation, desktop and mobile platforms when combined with supporting software.ą Intel 64 architecture improves performance by allowing systems to address more than 4 GB of both virtual and physical memory.

Idle States
Idle States (C-states) are used to save power when the processor is idle. C0 is the operational state, meaning that the CPU is doing useful work. C1 is the first idle state, C2 the second, and so on, where more power saving actions are taken for numerically higher C-states.

Enhanced Intel SpeedStep® Technology
Enhanced Intel SpeedStep® Technology is an advanced means of enabling high performance while meeting the power-conservation needs of mobile systems. Conventional Intel SpeedStep® Technology switches both voltage and frequency in tandem between high and low levels in response to processor load. Enhanced Intel SpeedStep® Technology builds upon that architecture using design strategies such as Separation between Voltage and Frequency Changes, and Clock Partitioning and Recovery.

Intel® Demand Based Switching
Intel® Demand Based Switching is a power-management technology in which the applied voltage and clock speed of a microprocessor are kept at the minimum necessary levels until more processing power is required. This technology was introduced as Intel SpeedStep® Technology in the server marketplace.

Execute Disable Bit
Execute Disable Bit is a hardware-based security feature that can reduce exposure to viruses and malicious-code attacks and prevent harmful software from executing and propagating on the server or network.

Intel® VT-x with Extended Page Tables (EPT)
Intel® VT-x with Extended Page Tables (EPT), also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Extended Page Tables in Intel® Virtualization Technology platforms reduces the memory and power overhead costs and increases battery life through hardware optimization of page table management.

Processor

Processor manufacturer

Intel

Processor model

L3406

Processor base frequency

2.26 GHz

Processor family

Intel® Xeon®

Processor cores

2

Processor socket

LGA 1156 (Socket H)

Component for

Server/workstation

Processor lithography

32 nm

Processor series

Intel Xeon 3400 Series

Processor threads

4

System bus rate

2.5 GT/s

Processor operating modes

64-bit

Processor boost frequency

2.53 GHz

Processor cache

4 MB

Processor cache type

Smart Cache

Thermal Design Power (TDP)

30 W

Box

Y

Cooler included

Y

VID Voltage Range

0.65 - 1.4 V

Compatible chipsets

Intel® 3400, Intel® 3420, Intel® 3450

Stepping

C2

Bus type

DMI

CPU multiplier (bus/core ratio)

17

Memory bandwidth supported by processor (max)

17 GB/s

Processor codename

Clarkdale

Processor code

SLBQQ

Processor ARK ID

47555

Memory

Maximum internal memory supported by processor

16 GB

Memory types supported by processor

DDR3-SDRAM

Memory clock speeds supported by processor

1066 MHz

Memory channels

Dual-channel

ECC

Y

Graphics

On-board graphics card

N

Features

Execute Disable Bit

Y

Idle States

Y

Thermal Monitoring Technologies

N

Market segment

Server

Maximum number of PCI Express lanes

16

PCI Express slots version

2.0

PCI Express configurations

1x16,2x8

Number of Processing Die Transistors

382 M

Processing Die size

81 mm˛

Number of Graphics & IMC Die Transistors

177 M

Graphics & IMC Die Size

114 mm˛

Supported instruction sets

SSE4.2

Physical Address Extension (PAE)

Y

CPU configuration (max)

1

Embedded options available

N

Graphics & IMC lithography

45 nm

Physical Address Extension (PAE)

36 bit

PCI Express CEM revision

2.0

Harmonized System (HS) code

8542310001

Export Control Classification Number (ECCN)

3A991

Commodity Classification Automated Tracking System (CCATS)

NA

Images Type Map

Processor special features

Intel® Hyper Threading Technology (Intel® HT Technology)

Y

Intel® Turbo Boost Technology

1.0

Intel® AES New Instructions (Intel® AES-NI)

N

Enhanced Intel SpeedStep Technology

Y

Intel Trusted Execution Technology

Y

Intel Enhanced Halt State

Y

Intel VT-x with Extended Page Tables (EPT)

Y

Intel Demand Based Switching

Y

Intel 64

Y

Intel Virtualization Technology (VT-x)

Y

Intel Virtualization Technology for Directed I/O (VT-d)

Y

Intel® vPro™ Platform Eligibility

N

Operational conditions

Tcase

53.9 °C

Technical details

Born on date

Q1'10

Bus bandwidth

2.5

Bus type units

GT/s

Launch date

Q1'10

Processor cache

4096 KB

Processor core voltage

0.6500-1.400 V

Product name

Intel Xeon L3406 (4M Cache, 2.26 GHz)

Product type

Processor

Status

Discontinued

Maximum memory

16.38 GB

Processor brand name

Intel Xeon

Supported memory types

DDR3-SDRAM

Last change

63903513

Product family

Intel Xeon Processor 3000 Sequence

Bus speed

2.5 GT/s

Packaging data

Package width

81 mm

Package depth

114 mm

Package height

102 mm

Package weight

394 g

Package type

Retail box

Weight & dimensions

Processor package size

37.5 x 37.5 mm

Other features

Intel® Virtualization Technology (Intel® VT)

VT-d,VT-x

Maximum internal memory

16.38 GB

Maximum internal memory

16777 MB

Cache memory

4 MB
