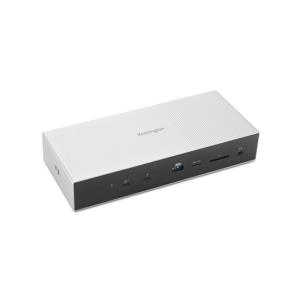

SD5000T5 EQ Thunderbolt 5 Triple 4K Docking Station with 140W PD - Windows/macOS

Introduction

Professionals with premium laptops often struggle to unlock the full potential of their devices. For those wanting to connect multiple high-resolution displays, transfer data at high speeds, and expand connectivity without relying on adapters, the SD5000T5 Thunderbolt™ 5 Triple Video Docking Station is the ultimate powerhouse. Providing a powerful single-cable solution that helps you be more productive, it supports multiple 4K monitors for expanded visual productivity, turbocharged speeds for working with large files, more ports for connecting accessories without using adapters, and amplified charging for meeting the demands of high-power workstations.

Boost Your Productivity with Thunderbolt™ 5
The SD5000T5 offers lightning-fast data transfers, achieving speeds up to 80Gbps and Bandwidth Boost providing up to 120Gbps for video-intensive usage.

Recycled Materials
Contains 100% post-consumer recycled (PCR) aluminum*– and delivered in Forest Stewardship Council (FSC®) certified packaging. * The outer casing of the docking station is made of aluminium, excluding the PCBA and any related inner components.

Triple 4K or Dual 8K Support
Supporting up to three 4K monitors at 144Hz or two 8K monitors at 60Hz, MacBook models with M4 Base, or M1/M2/M3/M4 Pro and Max, support up to two 6K monitors at 60Hz. The SD5000T5 ensures uncompromised visual quality and smooth multitasking for a high-performance workspace.

Up to 140W Power Delivery
Perfect for demanding workstations, the single-cable Thunderbolt™ 5 solution ensures seamless power and connectivity with up to 140W Power Delivery.

Productive 11-in-1 Design
3 x Thunderbolt™ 5 downstream ports, 1 x Thunderbolt™ 5 host, 3 x USB-A 3.2 Gen2 10Gbps ports, a combo audio jack, dual SD/Micro Card readers, and 2.5Gbps Ethernet for seamless productivity.

Built-in SD and Micro SD Card Readers
Perfect for graphic designers, video editors, and animators requiring fast and efficient data transfer speeds, the SD5000T5 transfers files at ultra-fast speeds via built in UHS-II SD and Micro SD card readers.

Universal Compatibility
Offers a quick and powerful plug-and-play solution for Thunderbolt™ 5, Thunderbolt™ 4, USB4®, and USB-C® devices running Windows 11 (23H2 or later) or macOS (14.5 or later).

Zero-Footprint Mounting Option and Security Cable Lock Slots
Maximize desktop space by mounting your docking station out of the way. Protect your investment with a Kensington cable lock (K65020EU or K65021WW), sold separately.

Ports & interfaces

Connectivity technology

Wired

Host interface

Thunderbolt 5

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

3

USB Power Delivery (USB PD)

Yes

USB Power Delivery revision

3.1

USB Power Delivery up to

140 W

Thunderbolt 5 ports quantity

3

Combo headphone/mic port

Yes

Headphone outputs

1

Headphone connectivity

3.5 mm

DC-in jack

Yes

Network

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Ethernet LAN data rates

10,100,1000,2500 Mbit/s

Performance

Card reader integrated

Yes

Compatible memory cards

MicroSD (TransFlash), SD

HD type

8K Ultra HD

Maximum digital resolution

7680 x 4320 pixels

Number of displays supported

3

Maximum refresh rate

540 Hz

Cable lock slot

Yes

Cable lock slot type

Kensington, Nano

Product colour

Black, Grey

LED indicators

Power

Plug and Play

Yes

Housing material

Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC)

Country of origin

China

Power

AC input voltage

100 - 240 V

Input current

2.5 A

Output voltage

20 V

Output current

9 A

Software

Windows operating systems supported

Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64

Mac operating systems supported

Mac OS X 15.0 Sequoia

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-18 - 60 °C

Operating relative humidity (H-H)

0 - 55%

Weight & dimensions

Width

226 mm

Depth

97 mm

Height

40 mm

Weight

975 g

Packaging data

Quantity per pack

1 pc(s)

Package width

264 mm

Package depth

125 mm

Package height

154 mm

Package weight

1.9 kg

Packaging content

Warranty card

Yes

Cables included

AC, Thunderbolt

AC adapter included

Yes

Quick start guide

Yes

Technical details

Compliance certificates

CB, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA

Logistics data

Products per master (outer) case

6 pc(s)

Other features

Minimum system requirements

CPU: Intel Core HX series 13th /14th+
