LCD Monitor Arm (fpma-w400) Wall Mount 397mm Length Grey

Introduction

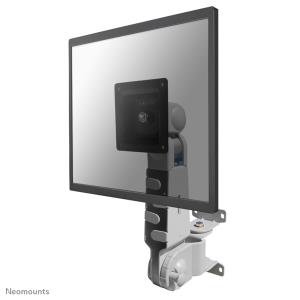

The Neomounts by Newstar wall mount, model FPMA-W400 is a tilt-, swivel and rotatable wall mount for flat screens up to 30". This mount is a great choice when you want the ultimate viewing flexibility with your flat screen. Effortless pull the display out from the wall, position it in almost any direction, turn it around corners and then smoothly return it to the wall when finished.

Neomounts by Newstar's versatile tilt (180°), rotate (270°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 30 centimetres. Depth adjustable from 10 to 40 centimetres. Cable management conceals and routes cables from mount to flat screen. Hide your cables to keep living room, bedroom or home cinema installation nice and tidy.

Neomounts by Newstar FPMA-W400 has three pivot points and is suitable for screens up to 30" (76 cm). The weight capacity of this product is 10 kg each screen. The wall mount is suitable for screens that meet VESA hole pattern 75x75 %26 100x100mm. Different hole patterns can be covered using Neomounts by Newstar VESA adapter plates.

Create a clean design ambiance for your flat screen TV in the living room, bedroom or home cinema.

All installation material is included with the product.

Mounting

Minimum screen size

25.4 cm (10")

Maximum weight capacity

10 kg

Maximum screen size

76.2 cm (30")

Minimum VESA mount

75 x 75 mm

Maximum VESA mount

100 x 100 mm

Number of displays supported

1

Mounting type

Wall

Ergonomics

Height adjustment

Y

Height adjustment type

Manual

Height adjustment range

0 - 300 mm

Tilt angle range

0 - 180°

Swivel angle

180°

Angle of rotation

270°

Design

Product colour

Grey

Compatibility

LCD/LED/TFT TVs

Technical details

Package net weight

2.56 kg

Weight & dimensions

Height

300 mm

Packaging data

Package width

430 mm

Package depth

160 mm

Package height

120 mm

Logistics data

Master (outer) case width

450 mm

Master (outer) case length

340 mm

Master (outer) case height

360 mm

Master (outer) case gross weight

17.3 kg

Master (outer) case net weight

16.5 kg

Products per master (outer) case

6 pc(s)

Harmonized System (HS) code

HS83025000

Products per pallet (EU)

90 pc(s)

Other features

Mounting interface

VESA 75 x 75mm, 100 x 100mm

Country of origin

Taiwan
