Product Details
Introduction

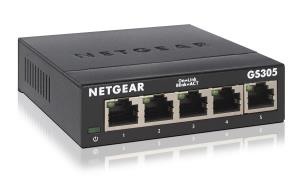

NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly. The GS305P and GS308P with Power-over-Ethernet (PoE) provides power and data from a single Ethernet (CAT-5) cable to devices such as IP cameras, VoIP/Internet-based phones, wireless access points, etc. With these unmanaged plug-andplay switches, you can expand your network connections to multiple devices instantly. Just step up to GS316, GS324 or GS348 directly to avoid congestion due to stacking up lower port count switches and be ready for future expansion.
Management features
Switch type
Unmanaged
Switch layer
L2
Quality of Service (QoS) support
Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
5
Power connector
DC-in jack
Network
Networking standards
IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x
10G support
N
Copper ethernet cabling technology
10BASE-T,100BASE-TX,1000BASE-T
Flow control support
Y
Auto MDI/MDI-X
Y
Auto-sensing
Y
Cable length detection
Y
Data transmission
Switching capacity
10 Gbit/s
Forwarding rate
1.448 Mpps
MAC address table
2000 entries
Latency (1 Gbps)
2.6 µs
Jumbo frames support
Y
Jumbo frames
9216
Packet buffer memory
128 MB
Design
Rack mounting
N
Product colour
Black
Housing material
Metal
LED indicators
Activity, Link, Power
Wall mountable
Y
Certification
CE Mark FCC Part 15 Class B IC Class B RCM VCCI
Performance
Mean time between failures (MTBF)
3831422 h
Power
Power consumption (max)
2.15 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
N
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 90%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Heat dissipation
7.35 BTU/h
Weight & dimensions
Width
101 mm
Depth
94 mm
Height
29 mm
Weight
250 g
