Product Details
Introduction

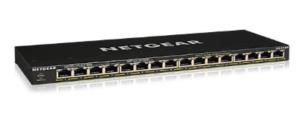

NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches with PoE provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly.
The unmanaged switches provides power and data from a single Ethernet (CAT-5e) cable to devices such as IP cameras, VoIP/ Internet-based phones, wireless access points, etc. The majority of these models also support PoE power auto-balance and allocation feature.
NETGEAR's unique PoE technology automatically balances the PoE power based on the device needs independent of PoE class detected. These switches deliver the power the device needs, at the most granular level.
Management features
Switch type
Unmanaged
Quality of Service (QoS) support
Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Power connector
DC-in jack
Network
Networking standards
IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x
10G support
N
Full duplex
Y
Flow control support
Y
Auto MDI/MDI-X
Y
Data transmission
Switching capacity
32 Gbit/s
MAC address table
4000 entries
Latency (1 Gbps)
3.7 µs
Jumbo frames support
Y
Jumbo frames
9216
Packet forwarding rate (1 Gbps)
1448000 pps
Packet buffer memory
1 MB
Design
Rack mounting
Y
Product colour
Black
Housing material
Metal
LED indicators
Y
Wall mountable
Y
Performance
Mean time between failures (MTBF)
2362192 h
Power
DC input voltage
54 V
Input current
2.4 A
Power consumption (max)
127.9 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Y
Power over Ethernet plus (PoE+) ports quantity
16
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 90%
Operating altitude
0 - 3000 m
Heat dissipation
437.42 BTU/h
Weight & dimensions
Width
286 mm
Depth
102 mm
Height
27 mm
Weight
880 g
