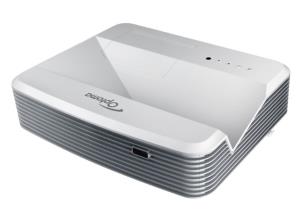

Projector W320USTi - DLP WXGA 1280x800 4000 LM 20000:1

Introduction

Ultra Short Throw Interactive Projection

The W320USTi, is perfect for businesses, schools and colleges. It is bright (4,000 lumens) and uses a new generation of TouchBeam finger-touch interactive technology, enabling several people to work simultaneously on the screen without using a pen. The throw ratio of 0.27:1 means that it can project a 100" image from less than 0.5m away. And having the projector installed so close to the screen avoids any shadows being cast across the screen from the presenter(s).

It provides a complete package for engaging learning with many new features, including two HDMI inputs, powered USB port, powerful 16W built-in speaker, improved lamp life, compact chassis and a completely new mounting system for a fast and simple set-up.

Projector

Supported aspect ratios

4:3,16:9,16:10

Screen size compatibility

2159 - 2921 mm (85 - 115")

Projection distance

0.49 - 0.66 m

Projector brightness

4000 ANSI lumens

Projection technology

DLP

Projector native resolution

WXGA (1280x800)

Native aspect ratio

16:10

Number of colours

1.073 billion colours

Uniformity

85%

Horizontal scan range

15.3 - 91.1 kHz

Vertical scan range

24 - 85 Hz

Keystone correction, vertical

-20 - 20°

Matrix size

1.65 cm (0.65")

Matrix type

DMD

Light source

Light source type

Lamp

Service life of light source

3000 h

Service life of light source (economic mode)

6500 h

Lamp power

260 W

Lamps quantity

1 lamp(s)

Lens system

Objective focal length

3.72 mm

Zoom ratio

Fixed

Throw ratio

0.27:1

Offset

115%

Video

Analog signal format system

NTSC,NTSC 3.58,NTSC 4.43,PAL,PAL B,PAL D,PAL G,PAL H,PAL I,PAL M,PAL N,SECAM,SECAM B,SECAM D,SECAM G,SECAM K,SECAM K1,SECAM L

Full HD

N

3D

Y

Supported 3D formats

Frame packing, Side by side, Top and bottom

Supported graphics resolutions

1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 800 (WXGA),1600 x 1200 (UXGA),640 x 480 (VGA),800 x 600 (SVGA)

Supported video modes

1080i,480i,576i,576p,720p

Ports & interfaces

HDMI version

1.4a

USB 2.0 ports quantity

2

Headphone outputs

1

Microphone in

Y

Serial interface type

RS-232

VGA (D-Sub) ports quantity

2

HDMI ports quantity

2

Composite video in

1

DVI port

N

CardBus PCMCIA slot type

N

AC (power) in

Y

Network

Ethernet LAN

Y

Ethernet LAN (RJ-45) ports

1

Storage

Card reader integrated

N

Optical disc player type

Not included

Features

Noise level (economic mode)

28 dB

On Screen Display (OSD)

Y

On Screen Display (OSD) languages

Arabic, Simplified Chinese, Traditional Chinese, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Slovenian, Swedish, Thai, Turkish

Password protection

Y

Multimedia

Built-in speaker(s)

Y

RMS rated power

16 W

Design

Product type

Ultra short throw projector

Product colour

Grey

Placement

Desktop

Cable lock slot

Y

Cable lock slot type

Kensington

Power

Power source

AC

Power consumption (typical)

310 W

Power consumption (standby)

0.5 W

Power consumption (economy mode)

260 W

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Auto power off

Y

Operational conditions

Operating temperature (T-T)

5 - 40 °C

Operating altitude

0 - 3000 m

Weight & dimensions

Width

385 mm

Depth

310 mm

Height

99 mm

Weight

4.85 kg

Packaging content

Remote control included

Y

Remote control type

IR

Batteries included

Y

Cables included

USB,VGA

Quick start guide

Y

Manual

Y

Technical details

Contrast ratio

20000:1

Sustainability certificates

RoHS

Other features

RS-232 ports

1

F-number (relative aperture)

2.4
